2016 MCH HV issues

Probable cable swapping

Following work done by Philippe Pillot concerning the comparison of the cluster maps for real data and simulated ones (see HitMaps for LHC16n) we found a suspicious thing in CH3L top (DE 301). Looks like the HV cables might be swapped between sector 1 and 2 (out of 3).

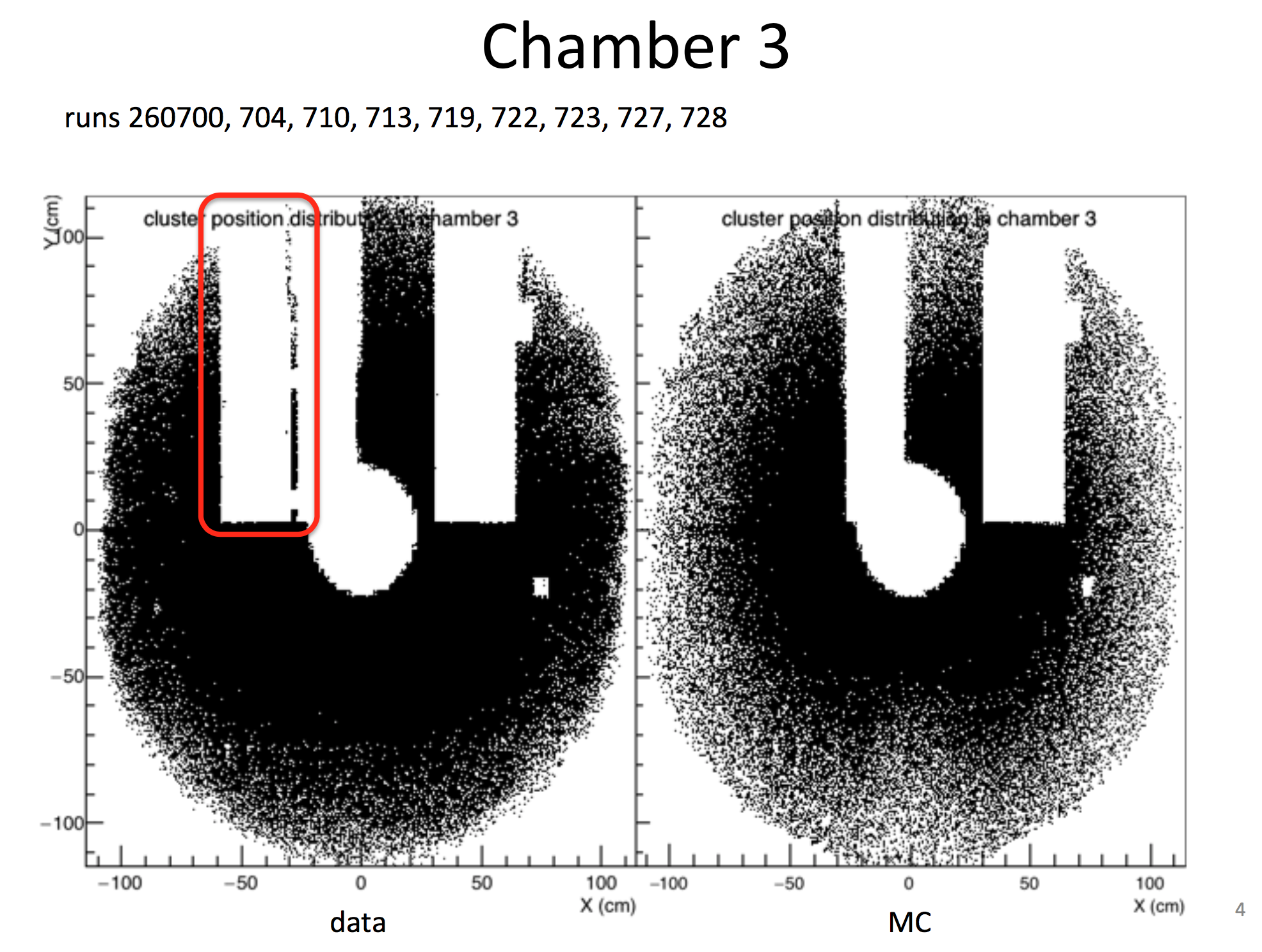

If we look at slide 4 of the presentation above, we see :

that in the data 2 HV sectors are dead, while in the simulation only 1 is killed by the status map. One plausible explanation for this observation is that the sector that has been found dead by the status map is incorrectly mapped and hence 2 sectors end up dead (the real one that is dead and the one erroenously mapped).

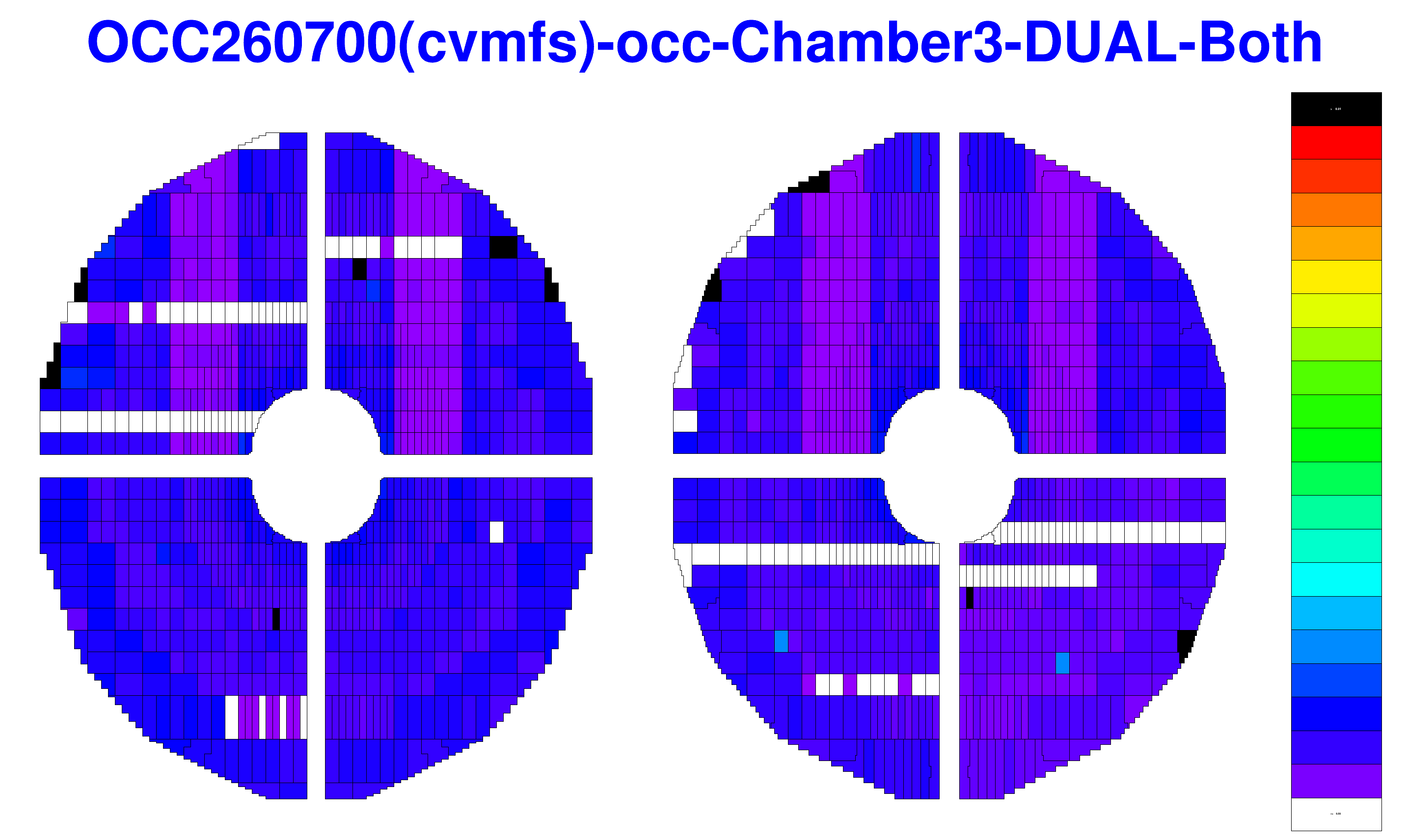

To confirm this fully would require a reconstruction without any HV cut, but we can already see a hint of confirmation by looking at the occupancy maps for that chamber and one of the affected runs, 260700 :

where we can indeed see that sector 2, not sector 1, seems a bit weak…

Using a scan of the HV values for the 698 runs of the periods LHC16h - LHC16p (the interesting part of the 2016 pp run) :

AliMUONTrackerHV hv("runlist.2016.txt","local:///cvmfs/alice-ocdb.cern.ch/calibration/data/2016/OCDB")
hv.Scan(1); > scan.hv.2016.log

one can investigate a bit the behaviour of that sector. We find 11 runs where the HV status is not “normal” (labelled “Brave New World” in the log file, see AliMUONCalibrationData::PatchHVValues method for more details)

> grep "DE  301" scan.hv.2016.log | grep -v "Brave New World" | grep "Quad1Sect0" | grep ": RUN" | cut -c 40-45
260700
260704
260710
260713
260719
260722
260723
260727
260728
260752
260782

Struggling HVs

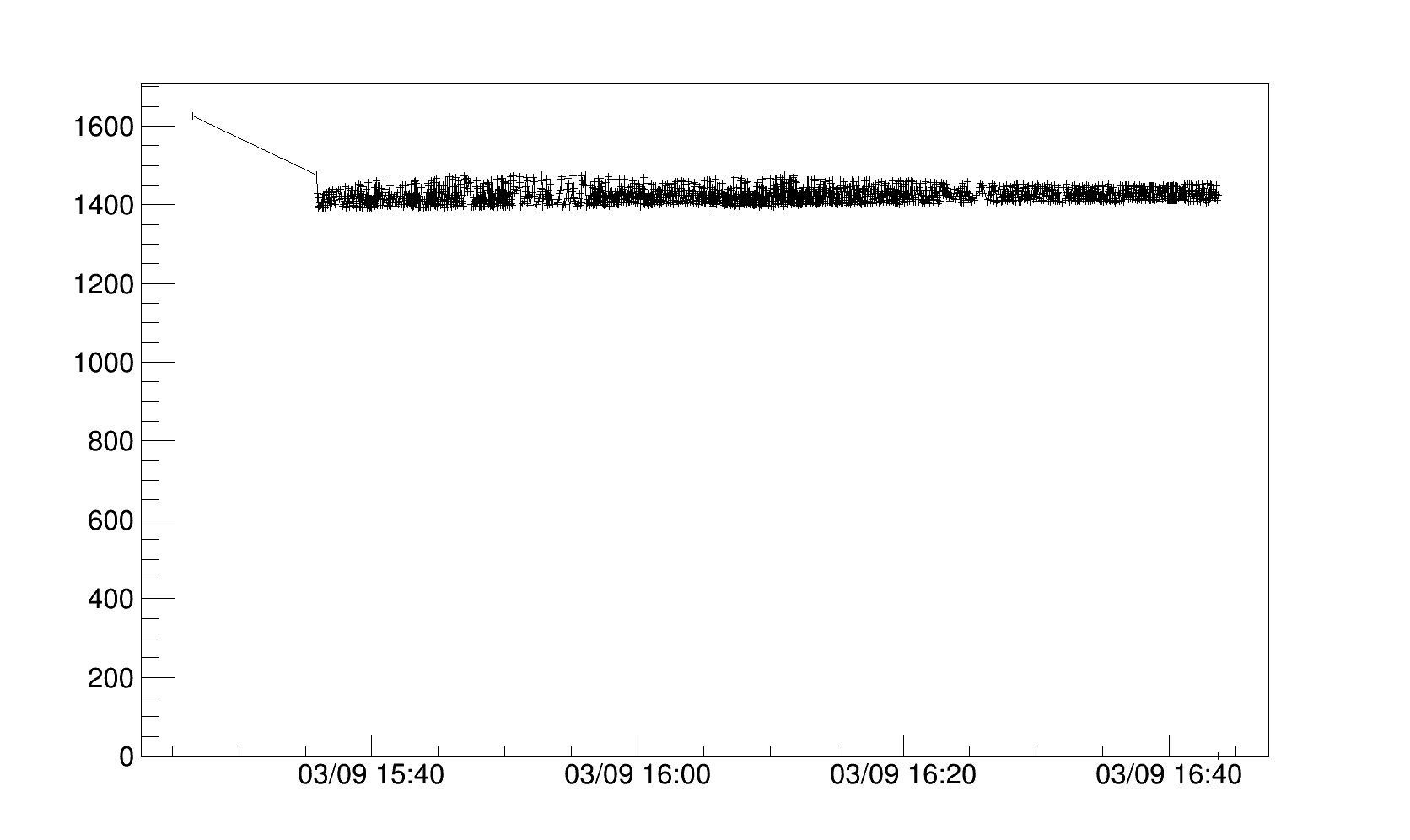

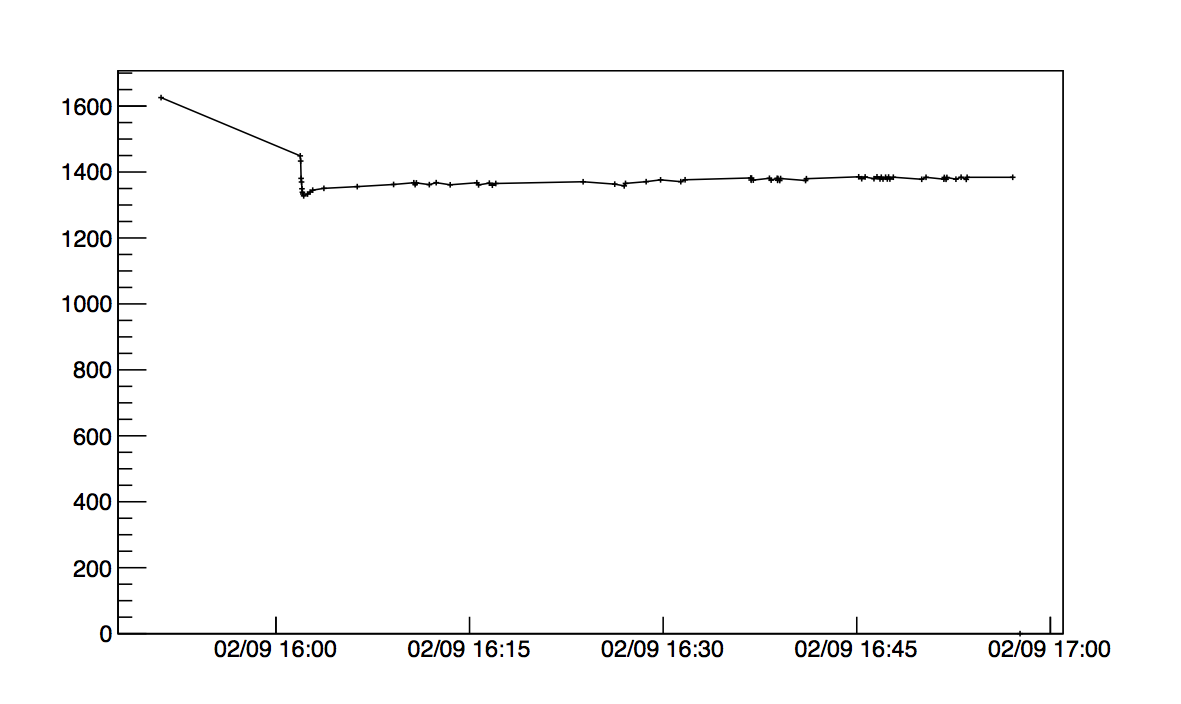

Besides this probable mapping problem, the channel itself (whatever one it is really) has some strange behavior, where it starts a run at nominal value but then decrease to around 1400 V and fluctuates there.

The current “HV cleaning” algorithm defined in AliMUONCalibrationData::PatchHVValues currently does not detect this pattern and considers the channel is OK. Which is problably not, is it not ?

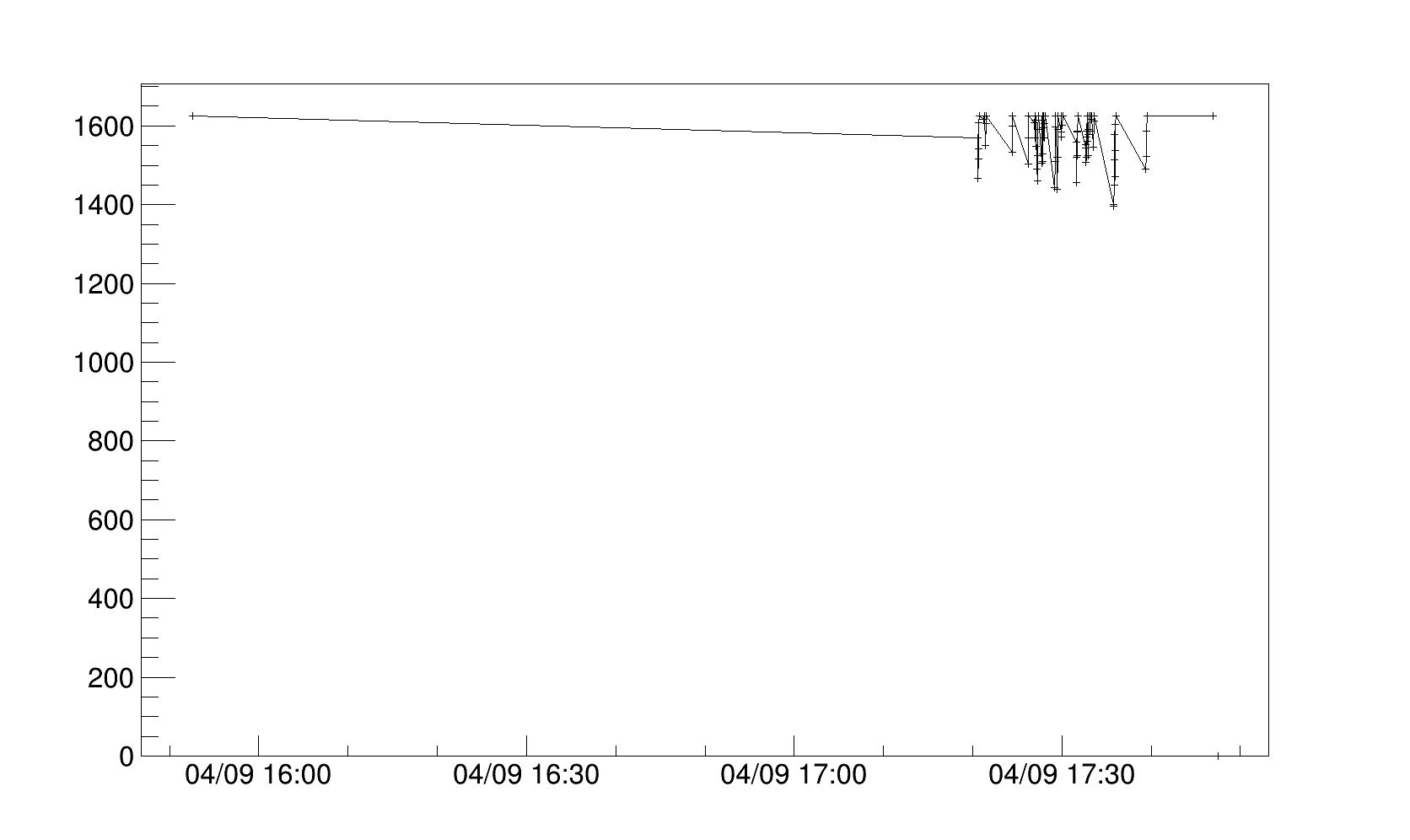

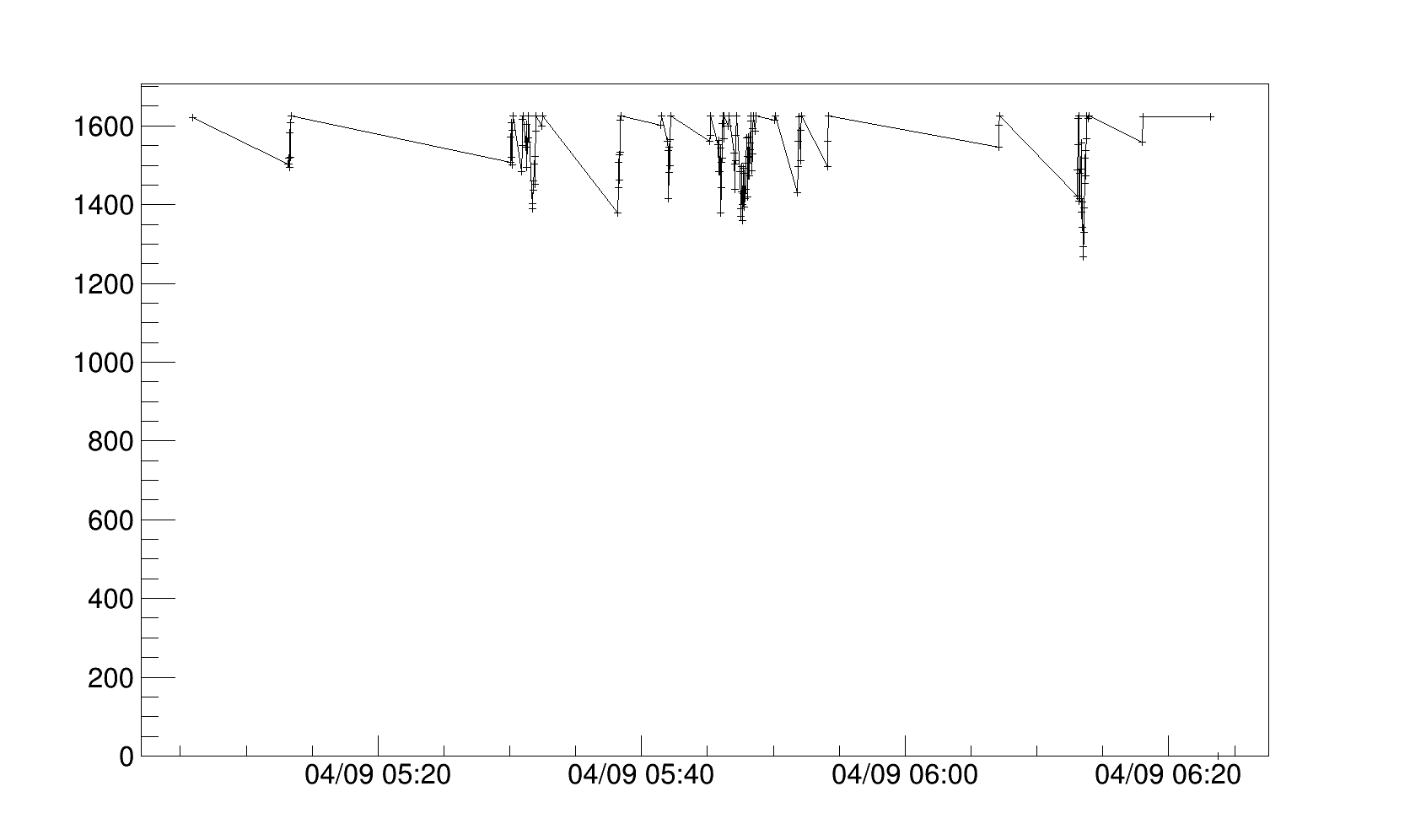

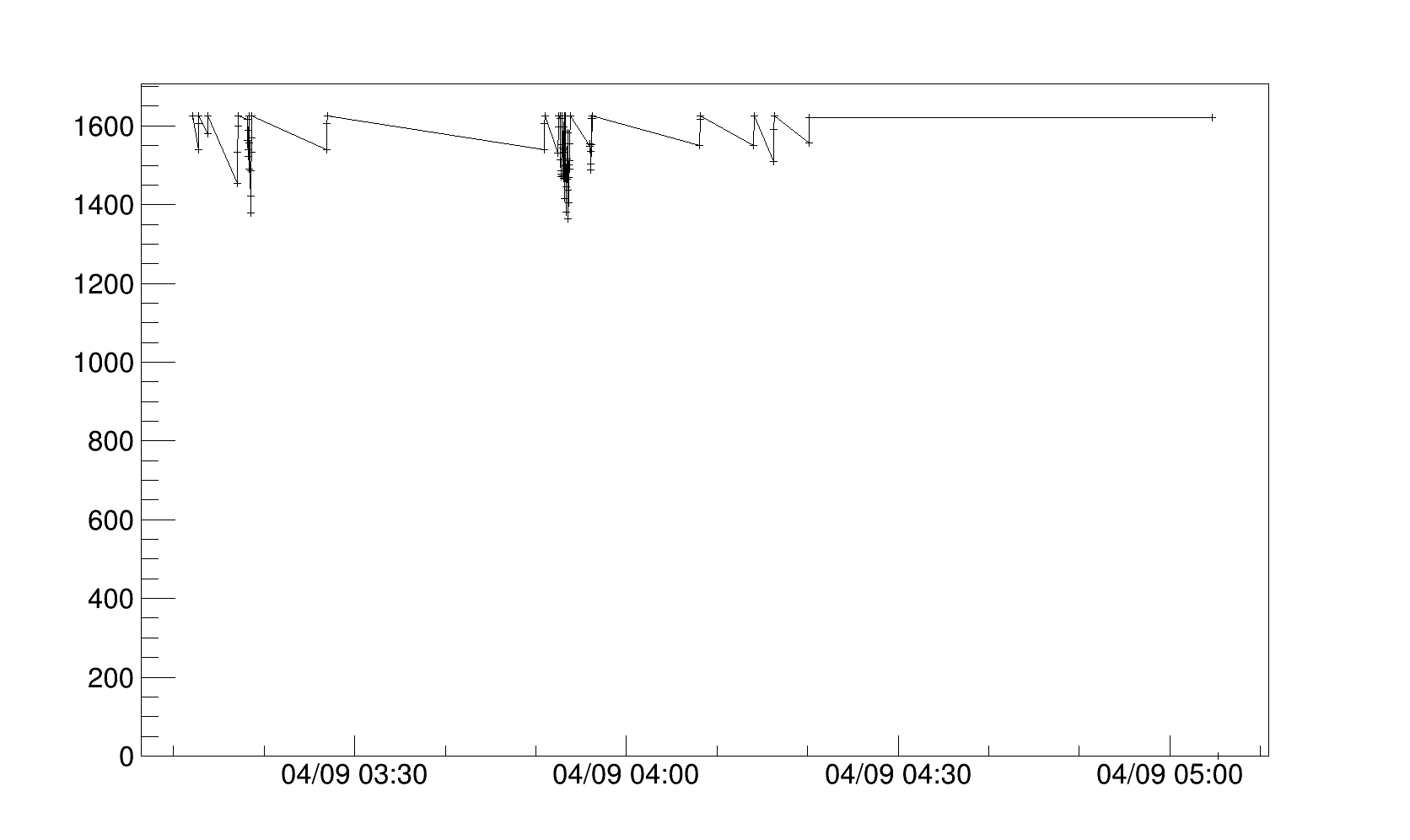

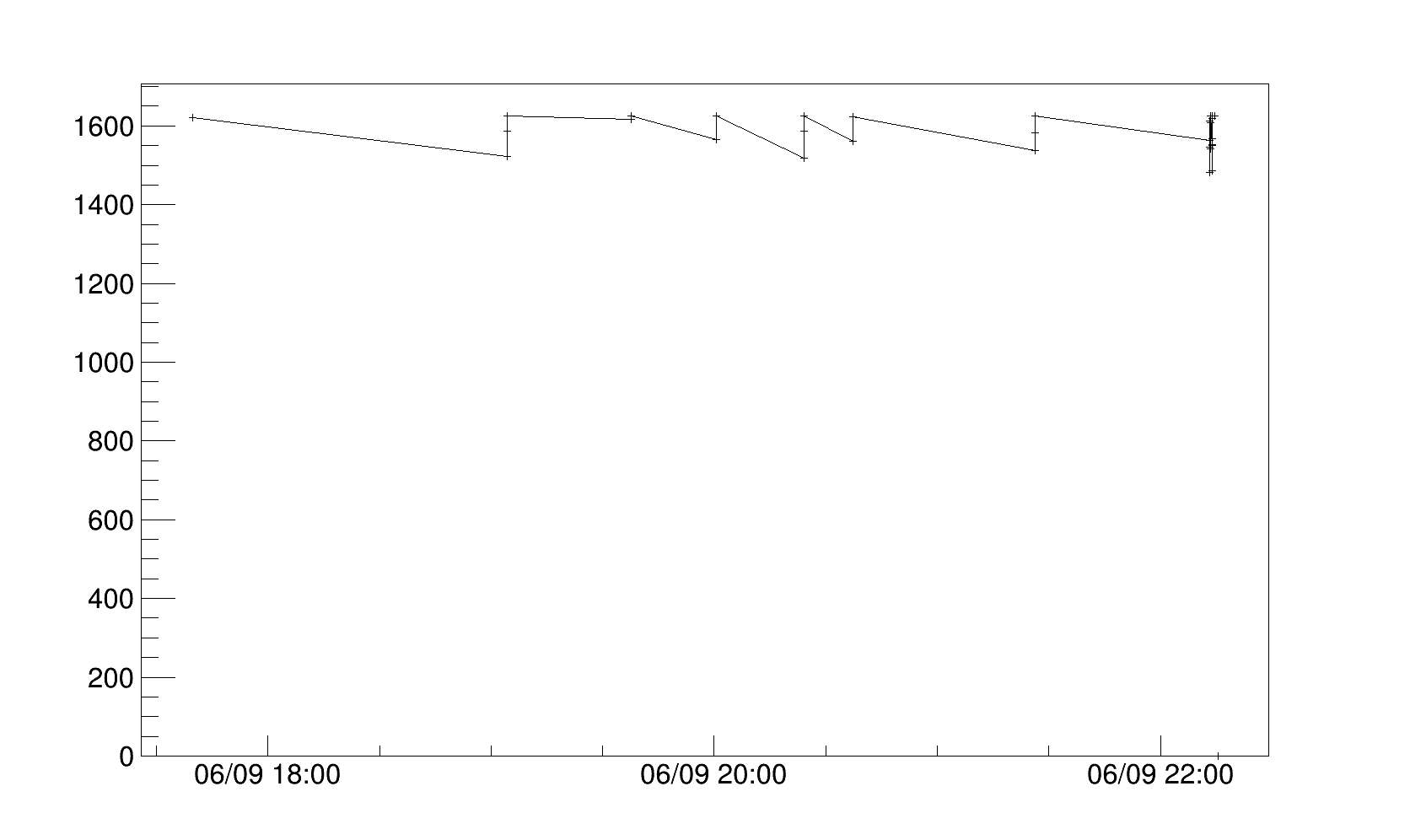

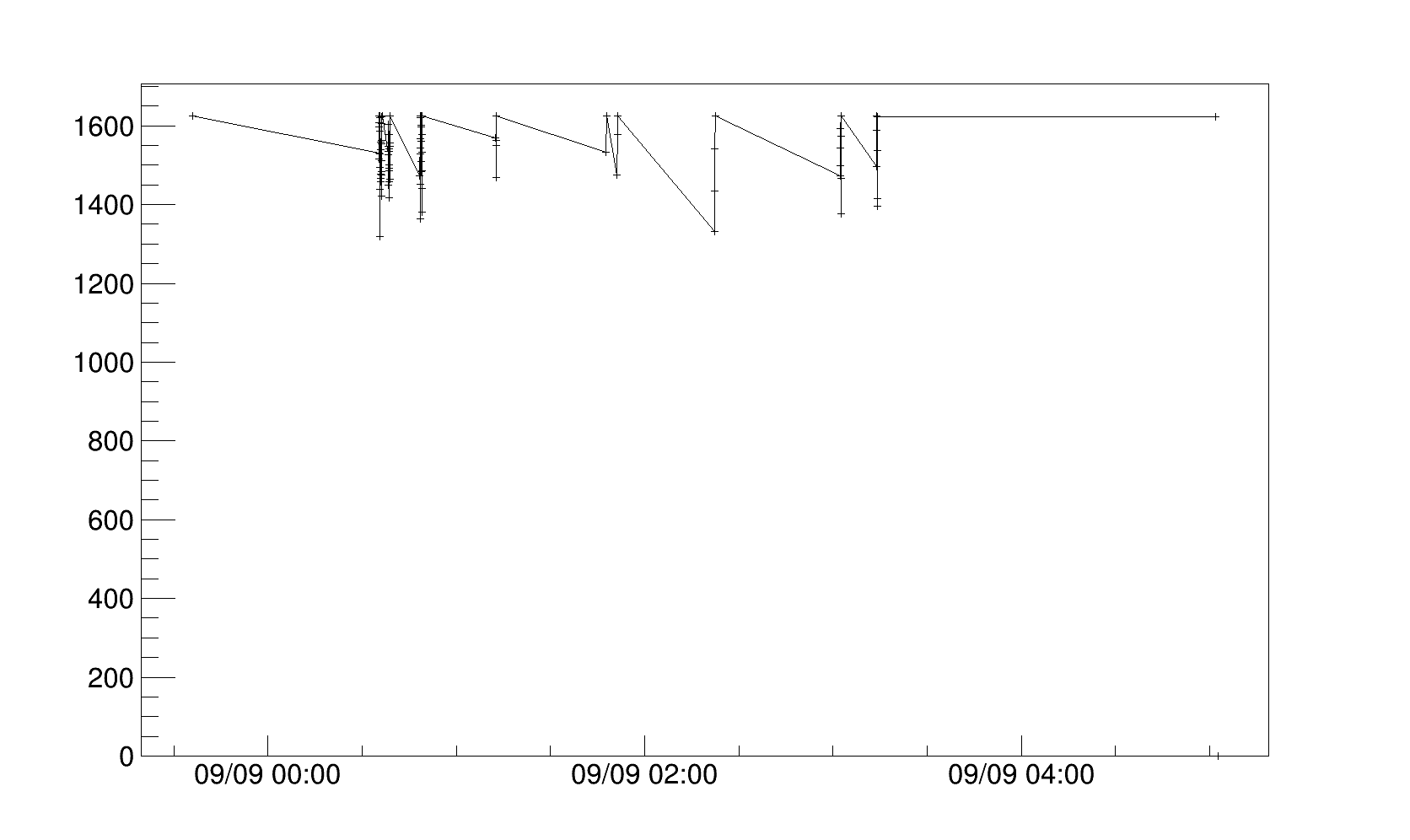

Actually this behavior is not limited to CH3. See below examples of other channels showing a somewhat similar pattern, where it seems the HV power supply is “struggling” to stay at nominal voltage, without tripping…

The question now is how to deal with those channels, which are currently not rejected at all during the reconstruction. Should they be ?

Patching the OCDB

After muon_calo_pass1 we decided to patch the OCDB itself instead of the AliRoot code. That is tweak the HV map from MUON/Calib/HV to swap Quad2Sect1 and Quad2Sect2 in Chamber03Left, using the following code :

#include "AliAnalysisTriggerScalers.h"
#include <iostream>
#include "AliCDBEntry.h"
#include "TMap.h"
#include "AliCDBManager.h"
#include "AliMUONCDB.h"
#include "AliDCSValue.h"
#include <vector>
#include <algorithm>

void PatchCDB(const char* runlist, const char* runlist1400, const char* srcOCDBPath="alien://folder=/alice/data/2016/OCDB", const char* destOCDBPath="alien://folder=/alice/cern.ch/user/l/laphecet/OCDBCH3L")
{
    // function to patch the OCDB MUON/Calib/HV for the swap of CH3L Q2S1 and Q2S2
    // runlist = full list of runs where Chamber03Left/Quad2Sect1 has an HV problem (trips, too low, plus the 1400 V
    // below)
    // runlist1400 = list of runs where Chamber03Left/Quad2Sect1 was struggling at 1400 V
    // for the runs in runlist1400, the HV will be forced to zero for that sector
    // note that Chamber03Left/Quad2Sect1 = Chamber02Left/Quad1Sect0 in DCS alias world

  AliAnalysisTriggerScalers ts(runlist,srcOCDBPath);

  std::vector<int> vrunlist = ts.GetRunList();

  AliAnalysisTriggerScalers ts1400(runlist1400,srcOCDBPath);
  std::vector<int> vrunlist1400 = ts1400.GetRunList();

  AliCDBManager* man = AliCDBManager::Instance();

  TObjString sector2("MchHvLvLeft/Chamber02Left/Quad1Sect0.actual.vMon");
  TObjString sector1("MchHvLvLeft/Chamber02Left/Quad1Sect1.actual.vMon");

  for ( auto r : vrunlist )
  {
      man->SetDefaultStorage(srcOCDBPath);
      man->SetRun(r);
      std::cout << "Run " << r << std::endl;

      AliCDBEntry* entry = man->Get("MUON/Calib/HV");
      TMap* hvmap = static_cast<TMap*>(entry->GetObject()->Clone());

      TPair* p1 = hvmap->RemoveEntry(&sector2);

      if ( std::find(vrunlist1400.begin(),vrunlist.end(),r) != vrunlist1400.end() )
      {
        TObjArray* a1 = static_cast<TObjArray*>(p1->Value());
        AliDCSValue* first = static_cast<AliDCSValue*>(a1->First());
        AliDCSValue* last = static_cast<AliDCSValue*>(a1->Last());
        a1->Delete();
        a1->Add(new AliDCSValue(0.0f,first->GetTimeStamp()));
        a1->Add(new AliDCSValue(0.0f,last->GetTimeStamp()));
      }
      TPair* p2 = hvmap->RemoveEntry(&sector1);

      hvmap->Add(new TObjString(sector2),p2->Value());
      hvmap->Add(new TObjString(sector1),p1->Value());

      delete p1->Key();
      delete p2->Key();

      man->SetDefaultStorage(destOCDBPath);
      hvmap->SetUniqueID( hvmap->GetUniqueID() | ( 1 << 9 ) );
      AliMUONCDB::WriteToCDB(hvmap,"MUON/Calib/HV",r,r,"Patched for CH3L Quad2Sect1 vs 0 swapping","L. Aphecetche");
      man->ClearCache();
  }
}

where runlist contains 51 runs :

266518,266520,266522,266523,266525,266533,266534,266539,266543,266549,266587,266588,266618,266619,266621,266630,266657,266658,266659,266665,266668,266669,266674,266676,266700,266702,266703,266706,266708,266775,266776,266800,266805,266807,266808,266878,266880,266882,266883,266885,266886,266912,266915,266940,266942,266943,266944,267109,267110,267130,267131

and runlist.1400 has 8 runs :

266518,266587,266588,266618,266619,266700,266800,266940

• 266518 is fluctuating and is currently incorrectly identified as OK by the offline HV cutter
• 266587 is currently incorrectly identified as OK by the offline HV cutter
• 266588 is at 1473 V for the full run so correctly rejected by the HV cutter
• 266618 is fluctuating and currently incorrectly identified as OK by the offline HV cutter
• 266619 is fluctuating but globally too low so correctly reject by the HV cutter
• 266700 has tripped (so correctly rejected)
• 266800 has tripped
• 266940 is a mess ;-) (ramp-up, fluctuating, then too low), but is correctly rejected

Even if some runs are correctly rejected by the offline HV cutter, I did not want to take any chance, so I explicitely (in the code above) killed sector Quad2Sect1 for those runs to insure it will be rejected offline.
