Recovering from a failed MCH Shuttle

During LHC17h period, the MCH Shuttle failed for 3 runs :

272763 PHYSICS run
272764 PHYSICS run
272781 PEDESTALS run (fill 5873)

and thus the corresponding OCDB objects (pedestals for run 272781 and HV,LV,occupancy and bus patch evolution for the 2 physics runs) were not uploaded.

To recover from this, Chiara Zampolli sent the Shuttle input files : the outputs from the DAs (MCHpedDA, MCHoccDA, MCHbpevoDA) and the DCS map (for HV and LV) :

 ./MCH_272763:
 run000272763_MCH_mon-DA-MCH-0_BPEVO
 run000272763_MCH_mon-DA-MCH-0_OCCUPANCY
 testDCSMap.root_MCH_1498419754_1498425527_run272763.root

 ./MCH_272764:
 run000272764_MCH_mon-DA-MCH-0_BPEVO
 run000272764_MCH_mon-DA-MCH-0_OCCUPANCY
 testDCSMap.root_MCH_1498425548_1498428314_run272764.root

 ./MCH_272781:
 run000272781_MCH_ldc-MUON_TRK-0_CONFIG
 run000272781_MCH_ldc-MUON_TRK-0_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-1_CONFIG
 run000272781_MCH_ldc-MUON_TRK-1_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-2_CONFIG
 run000272781_MCH_ldc-MUON_TRK-2_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-3_CONFIG
 run000272781_MCH_ldc-MUON_TRK-3_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-4_CONFIG
 run000272781_MCH_ldc-MUON_TRK-4_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-5_CONFIG
 run000272781_MCH_ldc-MUON_TRK-5_PEDESTALS
 run000272781_MCH_ldc-MUON_TRK-6_CONFIG
 run000272781_MCH_ldc-MUON_TRK-6_PEDESTALS

From there, using the MUON/macros/runMCHShuttleOffline.C macro (cooked for the occasion, see AliRoot PR 290) those files were read in by a Test Shuttle and uploaded to a local OCDB (in effect this macro is “replaying” the MCH Shuttle preprocessors offline).

Note that for ped the validity range had been adjusted (changing the file name) by hand using the next valid run number (for that object) found in the RAW ocdb.

~/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib
❯ find . -name '*272*'
./BPEVO/Run272763_272763_v0_s0.root
./BPEVO/Run272764_272764_v0_s0.root
./Config/Run272781_999999999_v0_s1.root
./HV/Run272763_272763_v0_s1.root
./HV/Run272764_272764_v0_s1.root
./LV/Run272763_272763_v0_s0.root
./LV/Run272764_272764_v0_s0.root
./OccupancyMap/Run272763_272763_v0_s1.root
./OccupancyMap/Run272764_272764_v0_s1.root
./Pedestals/Run272781_272790_v0_s1.root

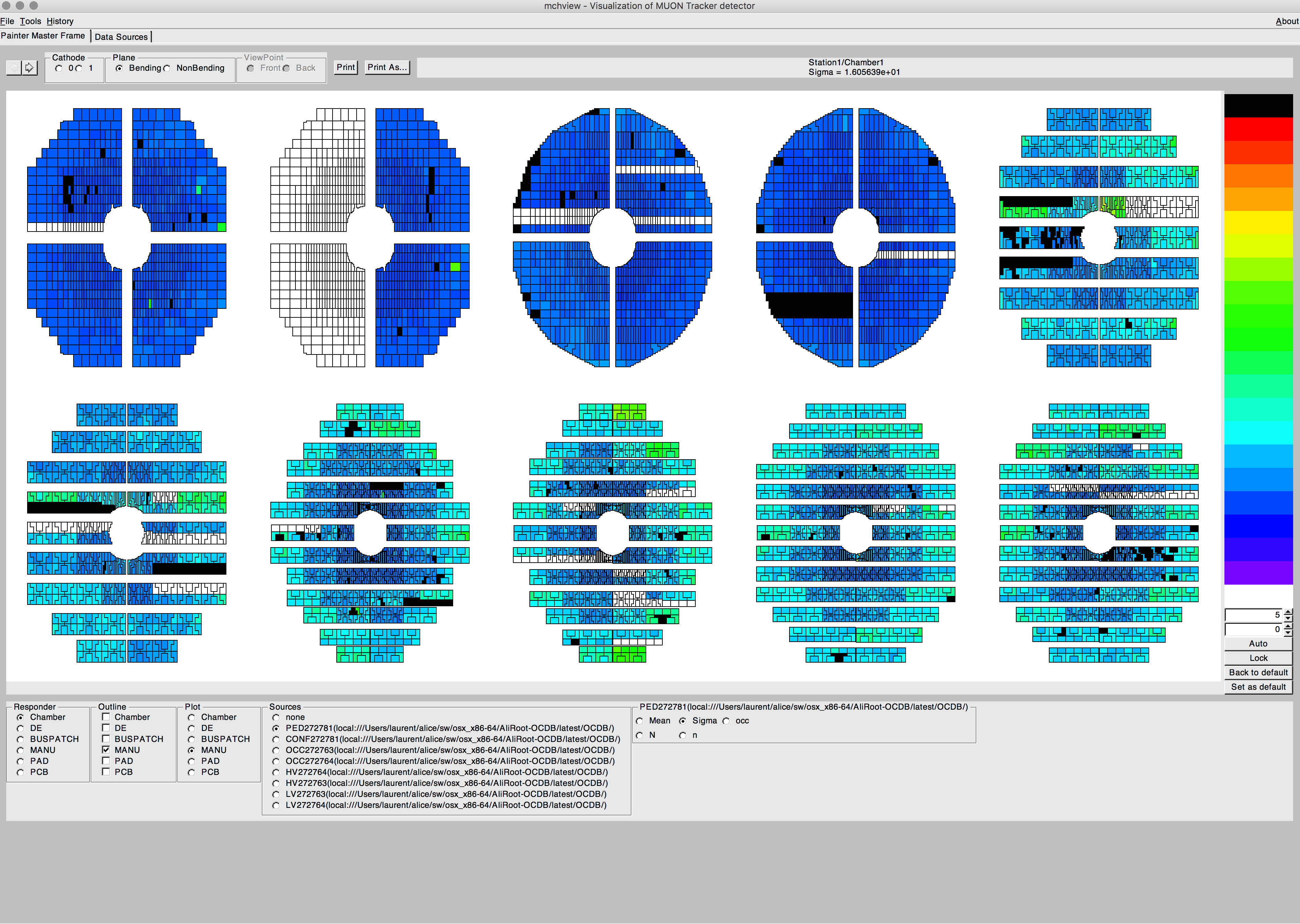

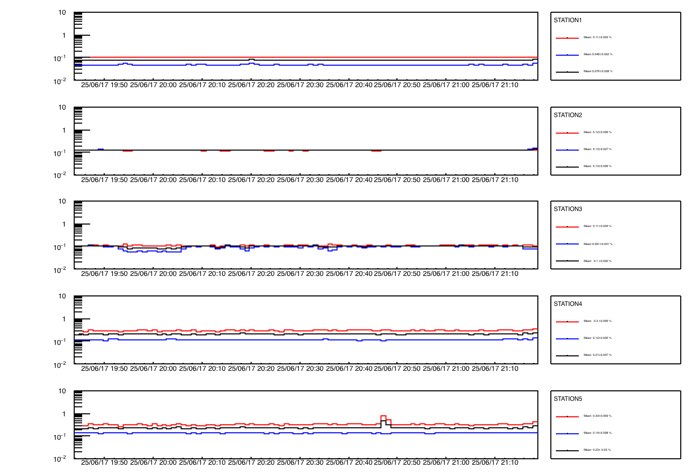

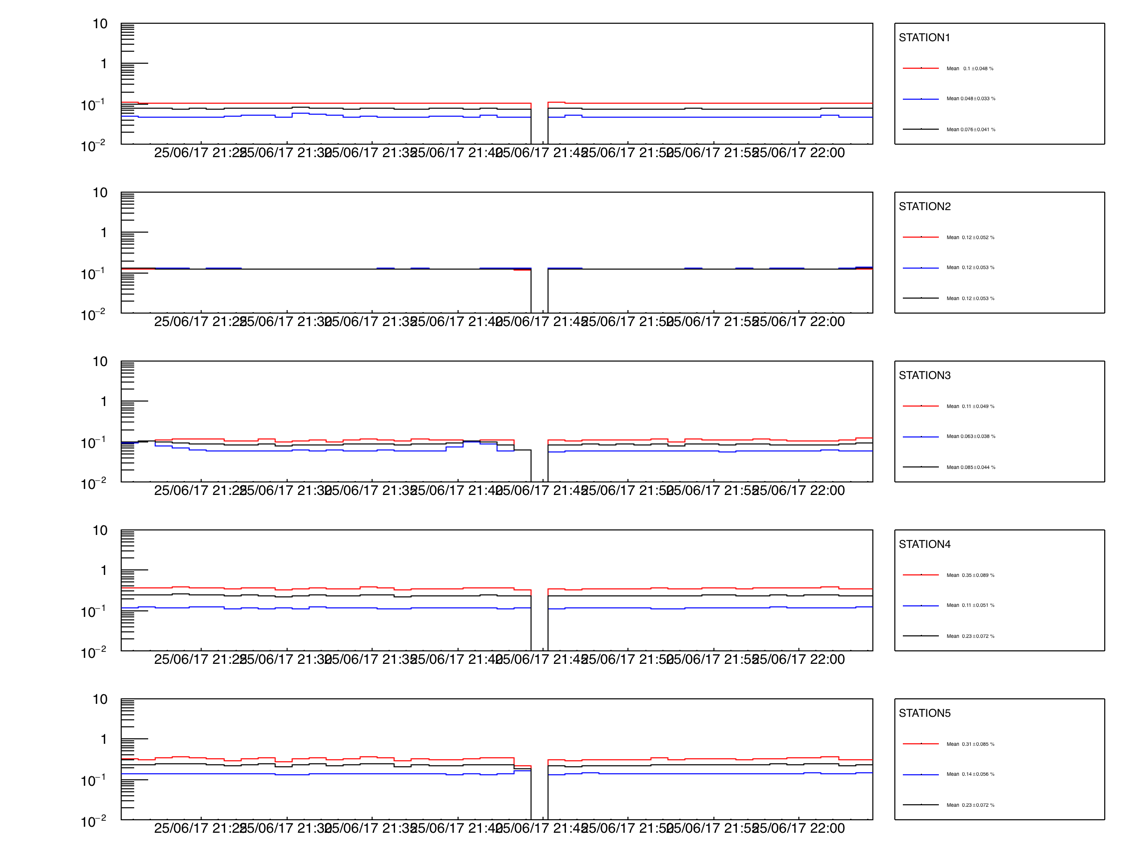

The OCDB files were then visually checked with the mchview program for ped,conf,occ,hv,lv and with the MUON/macros/MUONBusPatchEvolution.C macro for bpevo (for run 272763 and run 273764)

AliCDBManager::Instance()->SetDefaultStorage("local:///Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB")
AliCDBManager::Instance()->SetRun(272781)
.L MUONBusPatchEvolution.C+
AliMergeableCollection* bp = BPEVO(272763,"bpevo272763.root")
PlotStationOccupancies(*bp);

Finally the object were archived and sent to Chiara (via JIRA ticket ALIROOT-7357) for upload to RAW ocdb.

> tar zcvf $HOME/recover-failed-mch-shuttle.tar.gz $(find MUON/Calib -name '*272*' | grep -v Config | tr "\n" " ")
a MUON/Calib/BPEVO/Run272763_272763_v0_s0.root
a MUON/Calib/BPEVO/Run272764_272764_v0_s0.root
a MUON/Calib/HV/Run272763_272763_v0_s1.root
a MUON/Calib/HV/Run272764_272764_v0_s1.root
a MUON/Calib/LV/Run272763_272763_v0_s0.root
a MUON/Calib/LV/Run272764_272764_v0_s0.root
a MUON/Calib/OccupancyMap/Run272763_272763_v0_s1.root
a MUON/Calib/OccupancyMap/Run272764_272764_v0_s1.root
a MUON/Calib/Pedestals/Run272781_272790_v0_s1.root

Note that the conf has not changed since the previous conf (from run 272642) and thus is not included in the archived.
