# Muon Week 2017 Run3 - MRRTF ### Laurent Aphecetche #### 19 May 2017

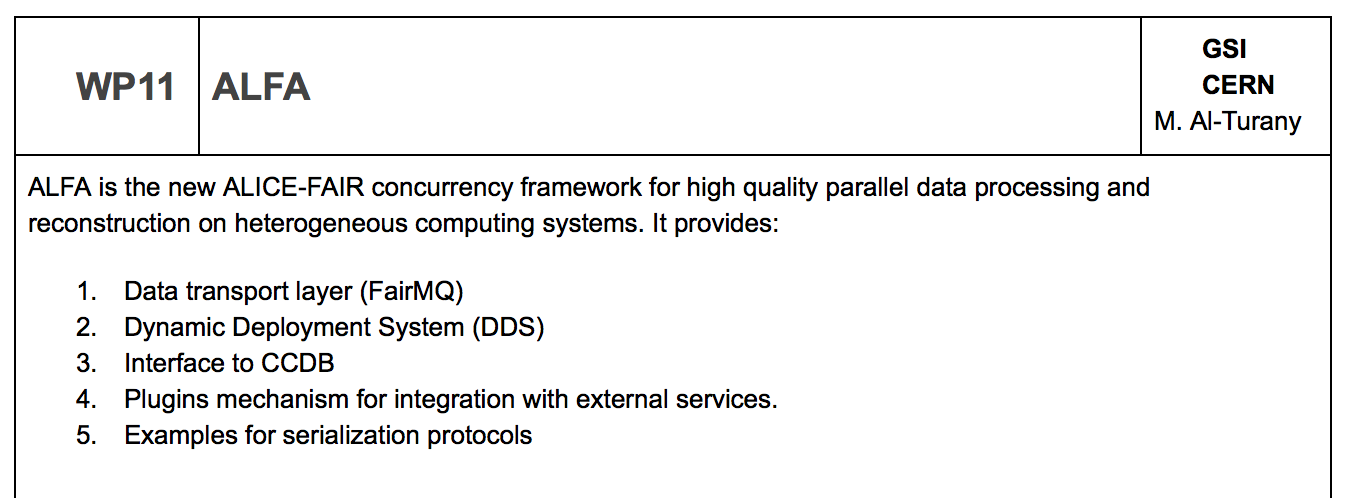

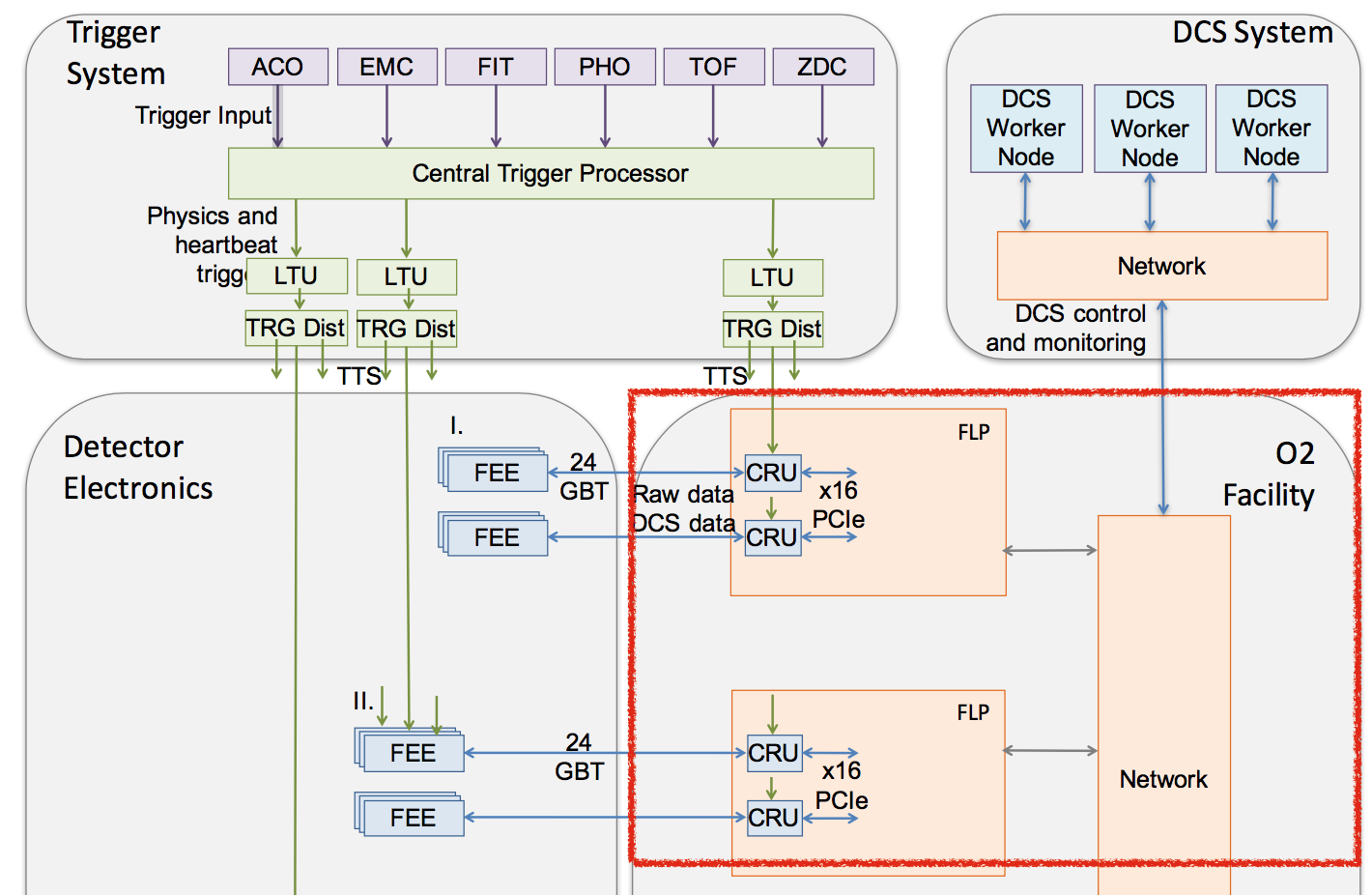

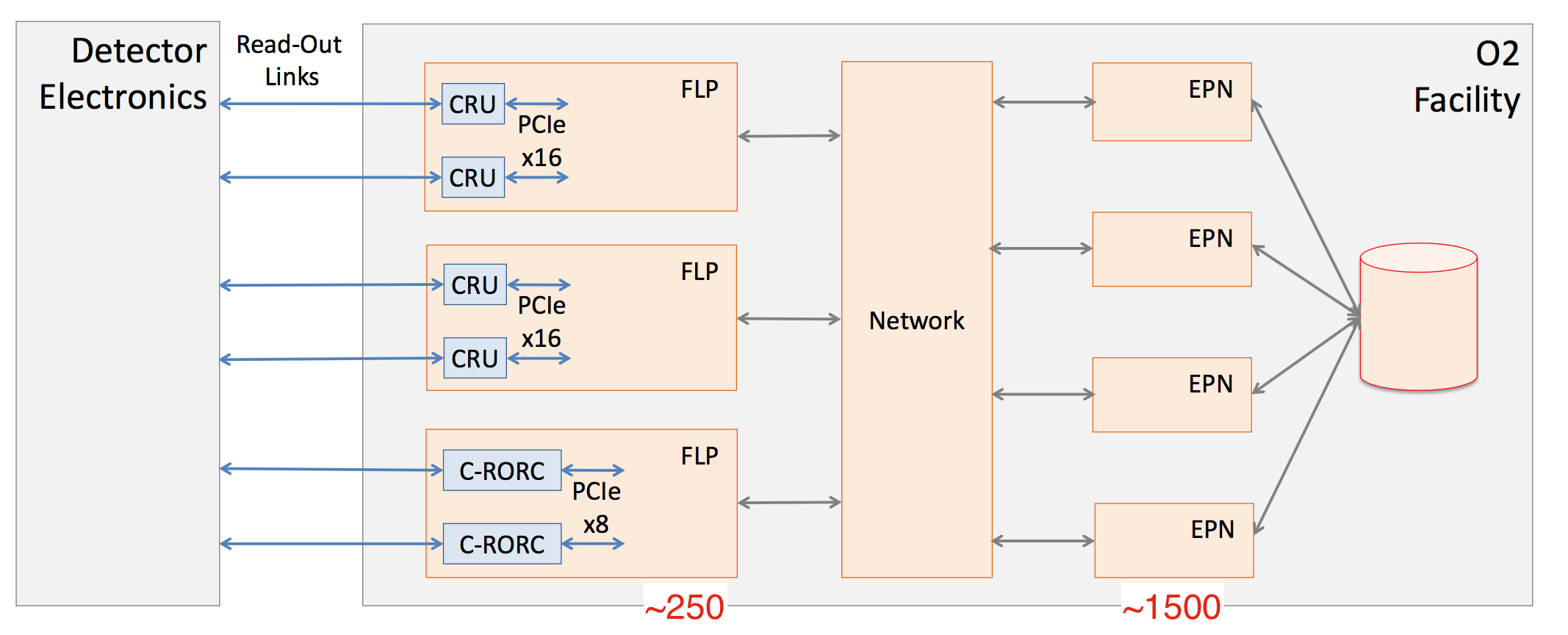

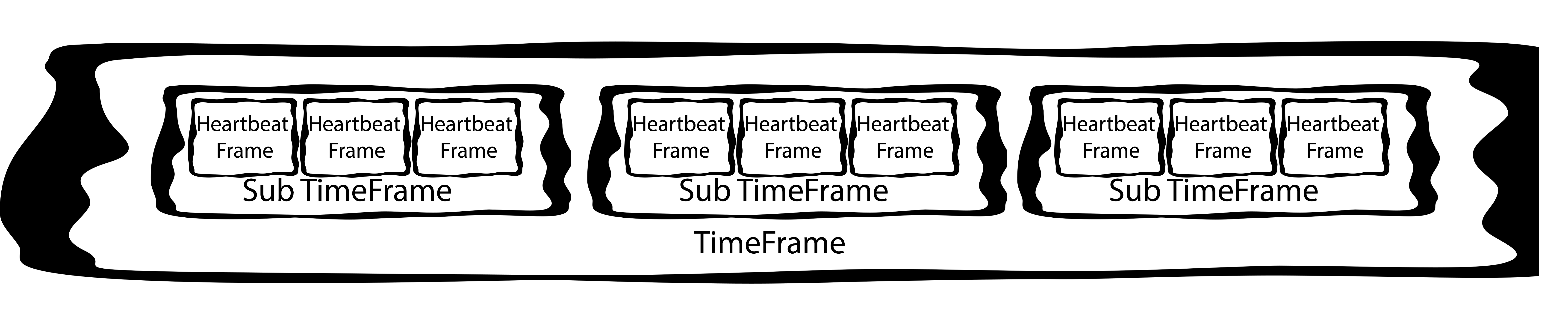

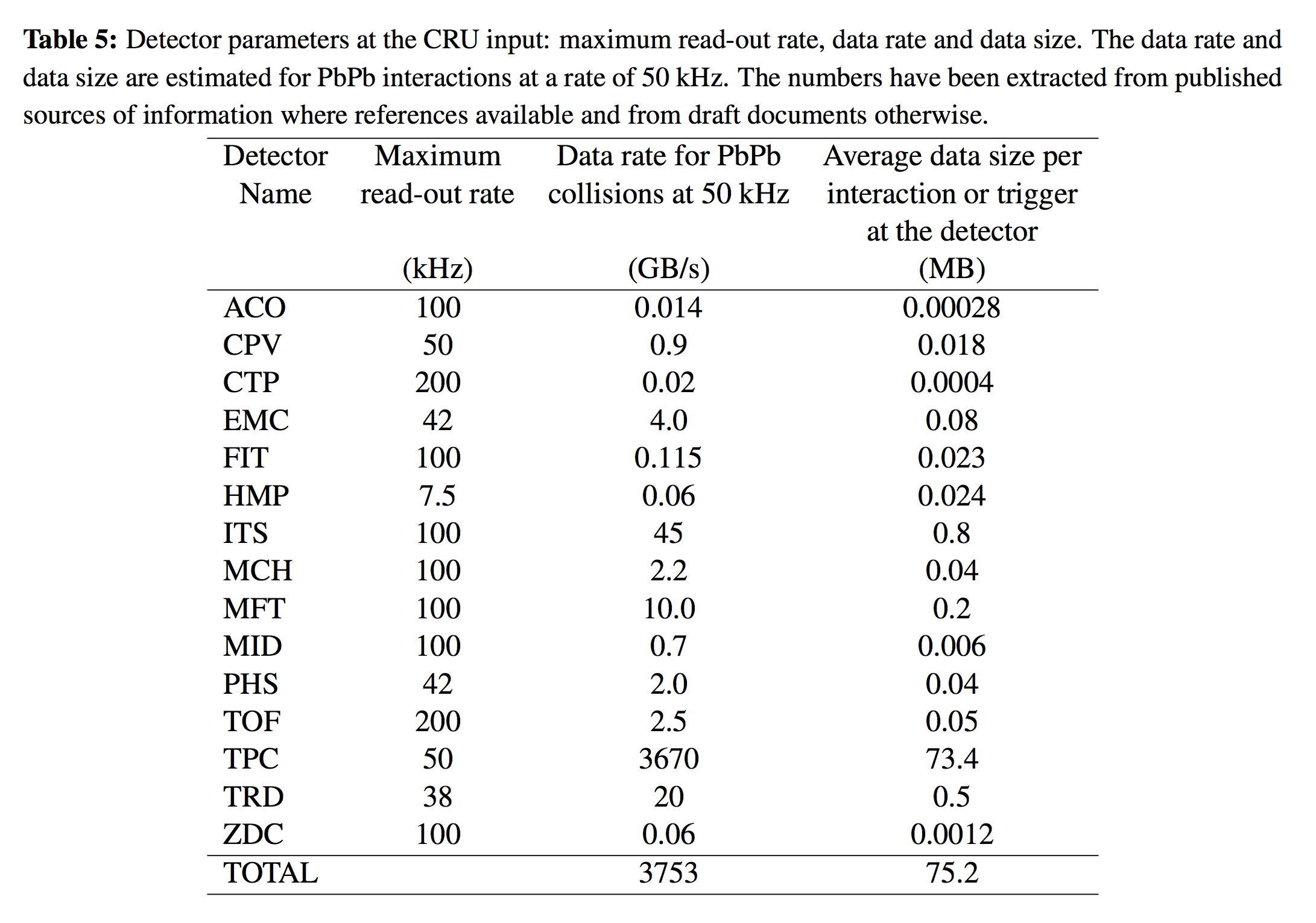

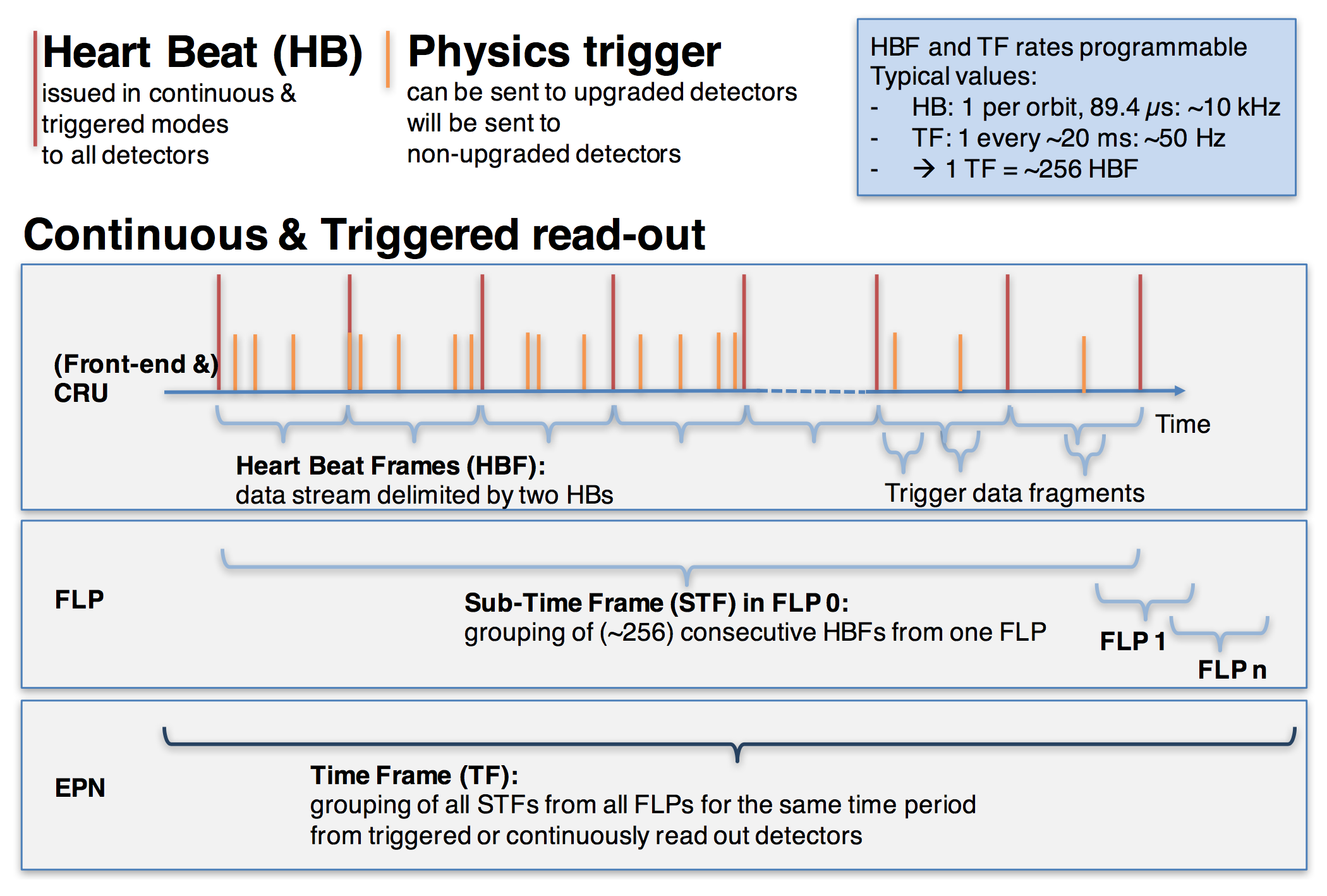

# Reminder of the problem at hand +++ # Going from ## 8 kHz PbPb @ 1 kHz w/ triggers +++ # To ## 50 kHz PbPb @ 50 kHz triggerless +++ # Lots of data ## 3 TB/s <i class="fa fa-long-arrow-right" aria-hidden="true"></i> CRU ## 90 GB/s <i class="fa fa-long-arrow-right" aria-hidden="true"></i> <i class="fa fa-database" aria-hidden="true"></i> +++ # Must fit in ## Time budget : treat data fast ## Storage budget : compress data +++ # Alice (TPC) priority ## Data compression +++ ## Muon-only needs are more modest ## ~ few GB/s ## envision full online reco --- # O2 Data Flow ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/alice-data-flow.png) +++ ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/alice-readout-block-diagram.png) +++ # Frames everywhere ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/frames.png) +++ ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/heartbeats-cru-flp-epn.png) +++ # ALFA ### Part of O2 is based on ALice FAir framework - working unit is a **device** - devices communicate through _messages_ - devices can be : - single or multi-core - on same machine or on different machines - in different languages --- # General O2 news +++ ## Bye bye Computing Working Groups +++ ## Hello [Work Packages](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4) +++ ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/O2-WPs-v3.5.png) +++ ## WPs <i class="fa fa-long-arrow-right" aria-hidden="true"></i>Institutional responsabilities +++ ## [<i class="fa fa-link" aria-hidden="true"></i>WP descriptions and planning](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4) - WP1 (data model) - WP3 (common tools and software infrastructure) - WP4 (O2 software framework) - WP11 (ALFA) - **WP12 (detector simulation)** - **WP13 (reconstruction and calibration)** +++ ## Also relevant for some of us - _WP6_ (detector readout) - _WP7_ (data quality control) - _WP9_ (event display) - WP10 (CCDB) - WP14 (analysis framework and facilities) - WP15 (data management) +++ # O2 links - [<i class="fa fa-book" aria-hidden="true"></i> TDR : Upgrade of the Online-Offline Computing System](https://cds.cern.ch/record/2011297) - [<i class="fa fa-github" aria-hidden="true"></i> Code](https://github.com/AliceO2Group/AliceO2) - [<i class="fa fa-bookmark" aria-hidden="true"></i> Web](https://alice-o2.web.cern.ch) - [<i class="fa fa-calendar" aria-hidden="true"></i> Meetings]() - plenary 1/month - technical 1/month (alternate) - WPs meetings (1/1-2 weeks) --- # MRRTF +++ # Muon Run3 Reconstruction Task Force +++ ## <i class="fa fa-users" aria-hidden="true"></i> Current cast <ul style="list-style:none"> <li> Diego <i class="devicons devicons-ionic" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:30%">30%</div></div></li> <li> Gabriele <i class="fa fa-graduation-cap" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:40%">40%</div></div></li> <li> Laurent <i class="devicons devicons-ionic" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:60%">60%</div></div></li> <li> Philippe <i class="devicons devicons-ionic" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:20%">20%</div></div></li> </ul> <ul style="list-style:none"> <li> Hugo <i class="devicons devicons-ionic" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:30%">30%</div></div></li> </ul> <ul style="list-style:none"> <li>Ivana <i class="fa fa-cogs" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:20%">20%</div></div></li> </ul> <ul style="list-style:none"> <li> Bogdan <i class="fa fa-cogs" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:20%">20%</div></div> </li> <li> Sebastien <i class="fa fa-cogs" aria-hidden="true"></i> <i class="devicons devicons-go" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:30%">30%</div></div></li> </ul> <ul style="list-style:none"> <li> Sean <i class="fa fa-graduation-cap" aria-hidden="true"></i> <i class="fa fa-cogs" aria-hidden="true"></i> <div class="w3-dark-grey w3-xlarge"><div class="w3-container w3-blue" style="width:40%">40%</div></div></li> </ul> ...FTE numbers are just wishes for the moment... +++ # 1st priority ## Reconstruction +++ # 2nd priority ## Simulation +++ <div id="timeline"></div>  +++ # Main issue so far is ... +++ # (wo)manpower ## <i class="fa fa-frown-o" aria-hidden="true"></i> how could you possibly guess ? +++ ## _Availability_ of manpower to be more precise ### We _do_ have volunteers <i class="fa fa-smile-o" aria-hidden="true"></i> ### but some had little _free_ time so far +++ # Net result being we're (almost) not moving +++ # Remedies ? ### 1 - Carve some time out for volunteers by finding other people to do part of their job +++ ### Example @ Subatech : trying to hire a post-doc focused on physics to free some time for permanent physicists +++ # Remedies ? ### 2 - Hire some skilled people (PhD or otherwise) for a 2-3 years to do part of the job ## Easier said than done ? --- # Some progress ### <i class="devicons devicons-go" aria-hidden="true"></i>[Go FairMQ device](http://talks.godoc.org/github.com/sbinet/talks/2017/20170331-alice-fer/talk.slide#1) #### ([March Alice Offline Week](https://indico.cern.ch/event/624025/), Sebastien) Demonstrates FairMQ-like device can be written in a different (i.e. not C++) language +++ # WIP ## [alo](https://gitpitch.com/mrrtf/alo) ## [sampa go](https://github.com/mrrtf/sampa) ## [mid occ](https://github.com/gabrielefronze/AliceO2/tree/my-dev-muon) +++ ## [mrrtf](https://mrrtf.github.io) "organization" [on <i class="fa fa-github" aria-hidden="true"></i>](https://github.com/mrrtf) ### host code before integration to AliceO2 repo ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/mrrtf-org.png) +++ ## [mrrtf on the <i class="fa fa-globe" aria-hidden="true"></i>](https://mrrtf.github.io) ### meant as an information tool for the team ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/mrrtf-github-io.png) +++ ## [JIRA "Agile" planning <i class="fa fa-calendar" aria-hidden="true"></i>](https://alice.its.cern.ch/jira/secure/RapidBoard.jspa?rapidView=242&projectKey=MRRTF&view=planning.nodetail&epics=visible) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/mrrtf-jira.png) --- # <i class="fa fa-question" aria-hidden="true"></i> or <i class="fa fa-commenting" aria-hidden="true"></i>  --- # BACKUP +++ ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/cru-input-rates.png) +++ [WP1](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp1.png) +++ [WP2](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp2.png) +++ [WP3](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp3.png) +++ [WP4](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp4.png) +++ [WP5](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp5.png) +++ [WP6](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp6.png) +++ [WP7](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp7.png) +++ [WP8](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp8.png) +++ [WP9](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp9.png) +++ [WP10](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp10.png) +++ [WP11](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp11.png) +++ [WP12](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp12.png) +++ [WP13](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp13.png) +++ [WP14](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp14.png) +++ [WP15](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp15.png) +++ [WP16](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp16.png) +++ [WP17](https://docs.google.com/document/d/1D2U1xr1QNEaRiP3nezYcsrfti0cnBuDmjtHH_BRWFI4/edit#heading=h.s1087skij9e8) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/wp17.png)
