# MCH Mapping Status ### Laurent Aphecetche #### 11 Jan 2018

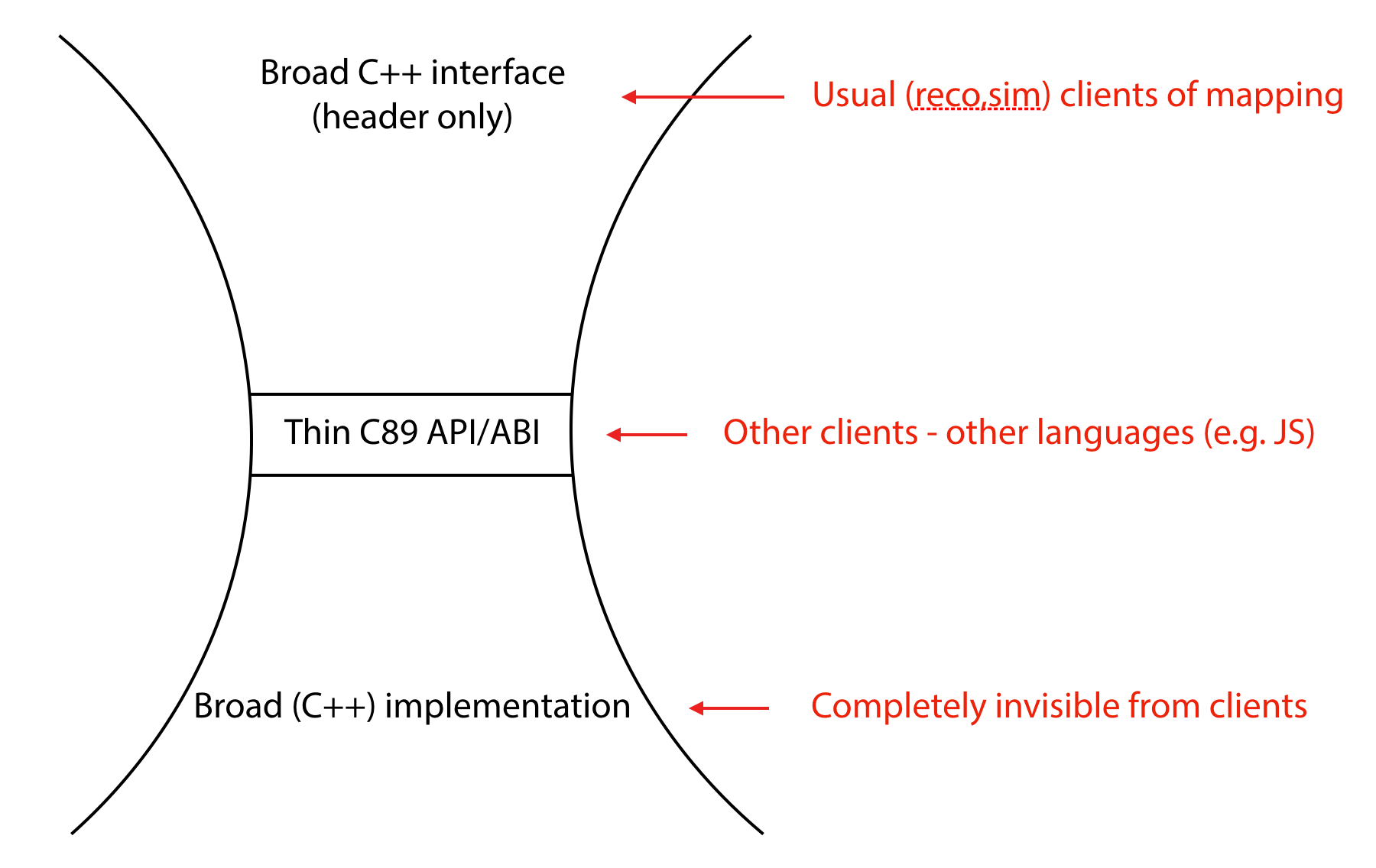

## The Art Of The Spiral ... ![](/talk/2018-01-11-mrrtf-status/spiral-start.svg) --- ## Goal for mapping library - Simple to use - Fast (-er than current one, at least) - Self-contained (i.e. no need to read in ASCII or OCDB files) - [ Swappable implementation ] --- ## Detours - [Boost test](http://www.boost.org/doc/libs/1_66_0/libs/test/doc/html/index.html), [TDD](https://www.amazon.fr/Modern-C-Programming-Test-Driven-Development/dp/1937785483/ref=sr_1_1?ie=UTF8&qid=1515660345&sr=8-1&keywords=c%2B%2B+test+driven+de) - Modern CMake [](https://www.youtube.com/watch?v=bsXLMQ6WgIk) [](https://www.youtube.com/watch?v=eC9-iRN2b04&t=2989s) - [Google Benchmark](https://github.com/google/benchmark) - [Boost Geometry Spatial Indices](http://www.boost.org/doc/libs/1_66_0/libs/geometry/doc/html/geometry/spatial_indexes.html) - [Hourglass interfaces](https://github.com/CppCon/CppCon2014/tree/master/Presentations/Hourglass%20Interfaces%20for%20C%2B%2B%20APIs) [](https://www.youtube.com/watch?v=PVYdHDm0q6Y) - Two Implementations - C++ Templates - Refactorings --- ## Reasons Behind Detours (1) - Boost test, TDD - code _must_ be testeable, no question here - Modern CMake - to understand how to deal properly with dependencies in vanilla CMake - Google Benchmark - to learn how to (micro)benchmark code, as eventually we'll deal with performance... --- ## Reasons Behind Detours (2) - Boost Geometry Spatial Indices - to try not reinvent the algorithmic wheel - Hourglass interfaces - to offer clean library, easy to evolve, accessible to other languages - Two Implementations - to get a fighting chance to have a good interface --- ## Reasons Behind Detours (3) - C++ Templates - for performance - need(ed) a refresh as used to be a no-go in AliRoot - Refactorings - safe with tests in place - is that even a detour btw ? --- ## Simplifications Or Complexifications - Current (AliRoot) implementations differ for St12 and St345 - different implementers, different times - but also different detectors - how much difference is justified ? - Initial tests with Boost Geometry Indices show that maybe it's a good fit only for St12 ? --- ## The Norm And The Deviants - "Regular" motif = (up to 64) _adjacent_ pads of _same_ size - 210 motif types in total - but only 5 leading to non-regular motifs - localized in 2 (over 21) segmentation types - Trying to avoid the minority of deviants to drive the implementation --- ## Current Status (finally...) [alo](https://github.com/aphecetche/alo) branch "hourglass" for latest wip. - Good : have a vs-aliroot **test** to check correctness of the implementations - Good : have a vs-aliroot **bench** to check speed - (Almost) good : have a C-like interface (almost) defined - Bad : currently two incomplete implementations - impl1 is missing full channel access and is a template madness - impl2 is WIP (but promising ;-)) - Bad : I'm late ---  # Planning ... --- ## [JIRA "Agile" planning ](https://alice.its.cern.ch/jira/secure/RapidBoard.jspa?rapidView=242&projectKey=MRRTF&view=planning.nodetail&epics=visible) ![](/talk/2017-05-19-muon-week-giusti-run3-mrrtf/mrrtf-jira.png) --- ## Reconstruction planning (1) ![](/talk/2018-01-11-mrrtf-status/muon-reco-planning-1.png) --- ## Reconstruction planning (2) ![](/talk/2017-11-09-alice-week-mrrtf-status/muon-reco-planning-2.png) --- ## The Notion of Done - Well underway is not the same as done... - Done would be : in O2 repo, tests and documentation ready --- ## Integration - should put what we have in AliceO2 repo - the sooner the better - MID first ? --- ## Next Hackathon - @Subatech ? - Would week 5 (Jan 30 - Feb 1) work ? --- # or  ---  # Backup --- ## Hourglass pattern ![](/talk/2018-01-11-mrrtf-status/hourglass.png) --- ### impl1 : find pad by (x,y) / [segtype] / [bending] ``` ❯ ./benchSegmentation --benchmark_filter="(0|16)/(0|1)" Run on (8 X 2800 MHz CPU s) 2018-01-11 11:32:18 --------------------------------------------------------------------------------------- Benchmark Time CPU Iterations UserCounters... --------------------------------------------------------------------------------------- BenchO2/hasPadByPosition/0/1 2000 us 1999 us 316 n=500.126k/s nin=428.108k/s BenchO2/hasPadByPosition/0/0 2139 us 2139 us 320 n=467.447k/s nin=387.981k/s BenchO2/hasPadByPosition/16/1 346 us 346 us 1881 n=2.88809M/s nin=2.80433M/s BenchO2/hasPadByPosition/16/0 246 us 246 us 2791 n=4.05993M/s nin=3.95437M/s BenchO2/hasPadByPosition/20/1 177 us 177 us 3934 n=5.65121M/s nin=5.65121M/s BenchO2/hasPadByPosition/20/0 126 us 126 us 5234 n=7.9437M/s nin=7.9437M/s BenchAliRoot/PadByPosition/0/1 353 us 353 us 1932 n=2.83682M/s nin=2.33754M/s BenchAliRoot/PadByPosition/0/0 1611 us 1611 us 413 n=620.81k/s nin=516.514k/s BenchAliRoot/PadByPosition/16/1 202 us 202 us 3287 n=4.94486M/s nin=4.7619M/s BenchAliRoot/PadByPosition/16/0 172 us 172 us 3707 n=5.80993M/s nin=5.58334M/s BenchAliRoot/PadByPosition/20/1 176 us 176 us 3471 n=5.68363M/s nin=5.68363M/s BenchAliRoot/PadByPosition/20/0 156 us 156 us 4431 n=6.39301M/s nin=6.39301M/s ``` --- Test project /Users/laurent/alice/sw/BUILD/alo-latest-clion/alo ``` Start 1: testJsonMapCreator 1/8 Test #1: testJsonMapCreator ............... Passed 9.11 sec Start 2: testContourCreatorVsAliRoot 2/8 Test #2: testContourCreatorVsAliRoot ...... Passed 4.81 sec Start 3: testSegmentationVsAliroot 3/8 Test #3: testSegmentationVsAliroot ........ Passed 23.14 sec Start 4: testSomeGlobalNumbers 4/8 Test #4: testSomeGlobalNumbers ............ Passed 2.04 sec Start 5: testContour 5/8 Test #5: testContour ...................... Passed 0.06 sec Start 6: testimpl1 6/8 Test #6: testimpl1 ........................ Passed 0.46 sec Start 7: testSegmentation1 7/8 Test #7: testSegmentation1 ................ Passed 1.77 sec Start 8: testSegmentation2 8/8 Test #8: testSegmentation2 ................***Failed 0.07 sec 88% tests passed, 1 tests failed out of 8 Total Test time (real) = 41.48 sec The following tests FAILED: 8 - testSegmentation2 (Failed) ```
