# MchView 2.0
##
### Laurent Aphecetche
#### 04 Apr 2019
## Current mchview
- based on old Root GUI
- visually and technically outdated
- difficult to maintain
- difficult to develop further
---
## Replace with something
- with a better looking UI.
- easier to develop
- easier to maintain
- easier to use from ~anywhere
- with more origins for data sources (e.g. clusters...)
Using web technologies (HTML/CSS/JS)
---
## The mockup

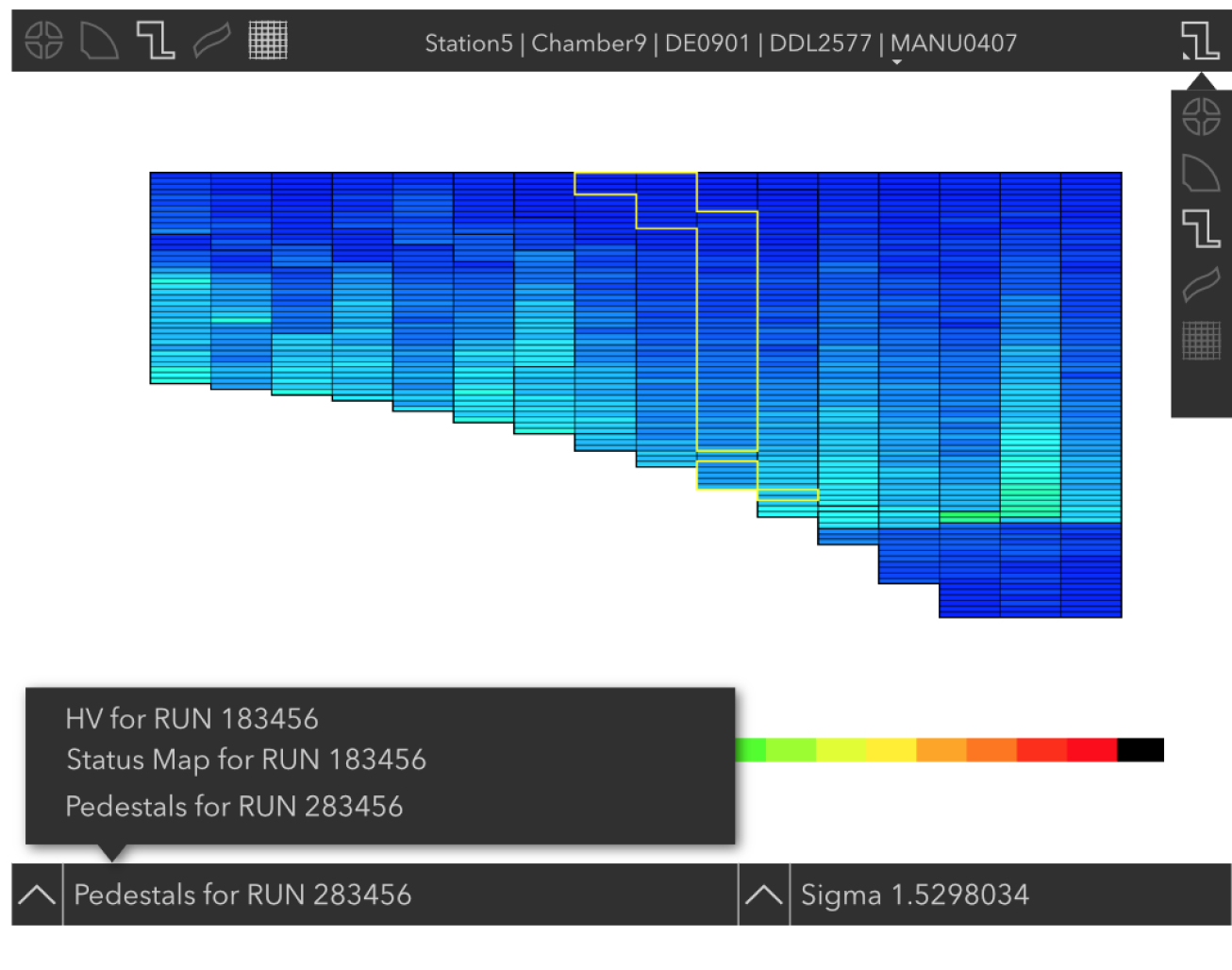

<img src="mchview-mockup.png" width="70%" />
---
## UI elements

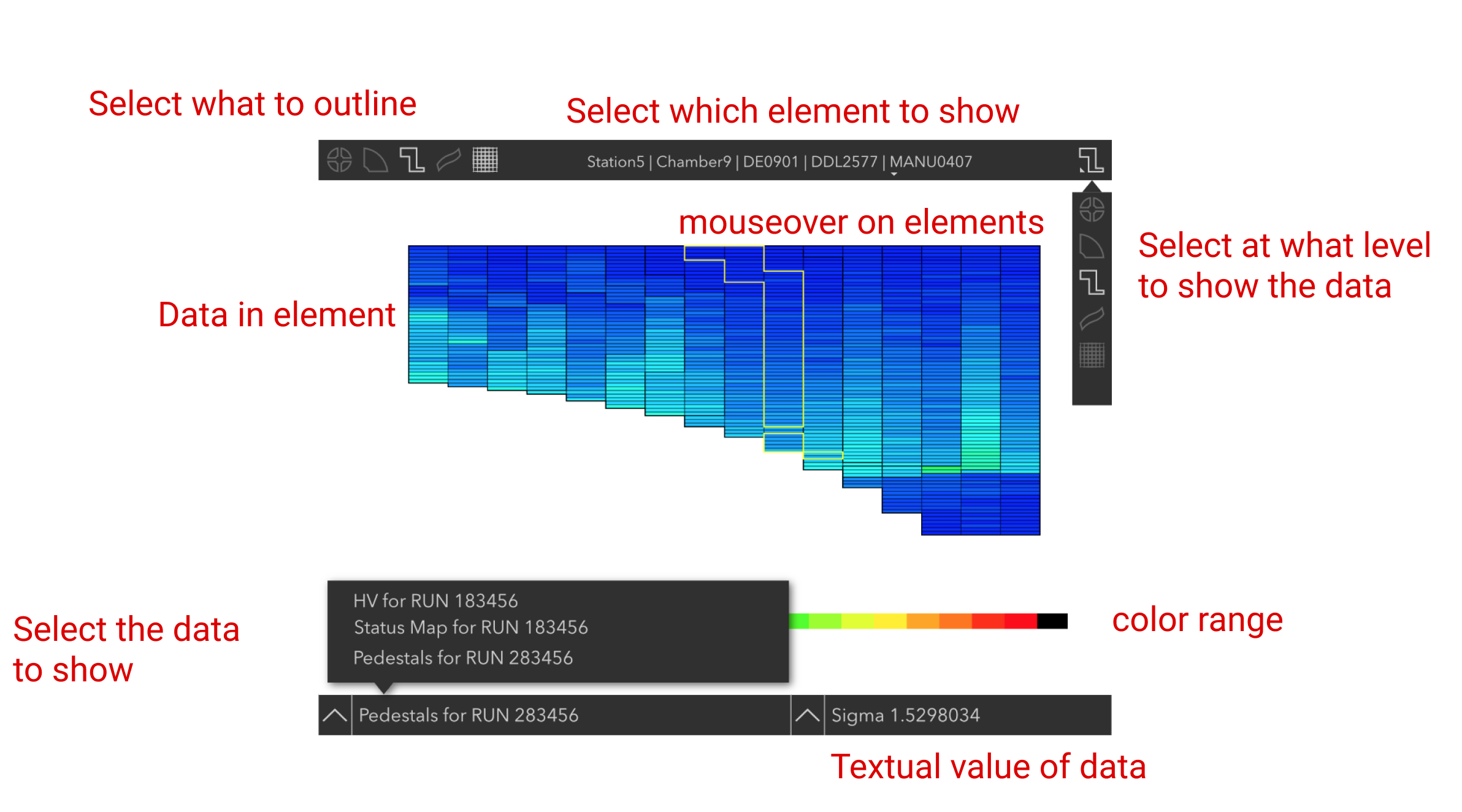

<img src="mchview-mockup-legend.png" width="90%" />
---
## UI elements = components
- Each component can be developped independently
- and plugged/reused easily in different views
- defined within a Javascript framework ([Mithril](https://mithril.js.org) or [React](https://reactjs.org))
---
## Data access
Clearly separated from UI
Using external APIs as much as possible
Those APIs might be used outside mchview as well
---
## Mapping as a service
Not strictly _required_ to be an API
But using it as a playground for API dev
One advantage (for mchview) is that it loads only what is needed for a view
---
## Mapping API

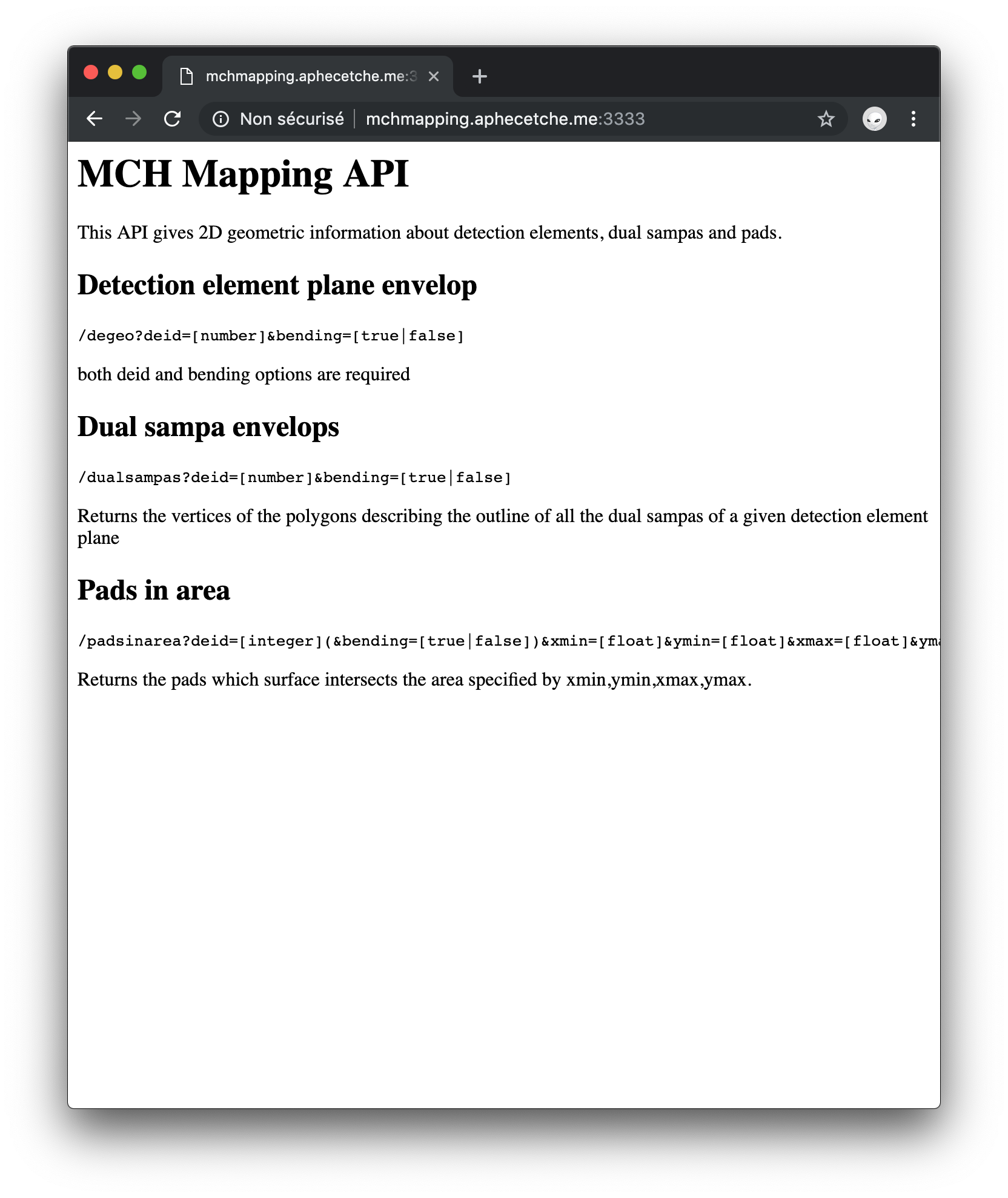

Entry point gives you a help.
---
## Mapping API example

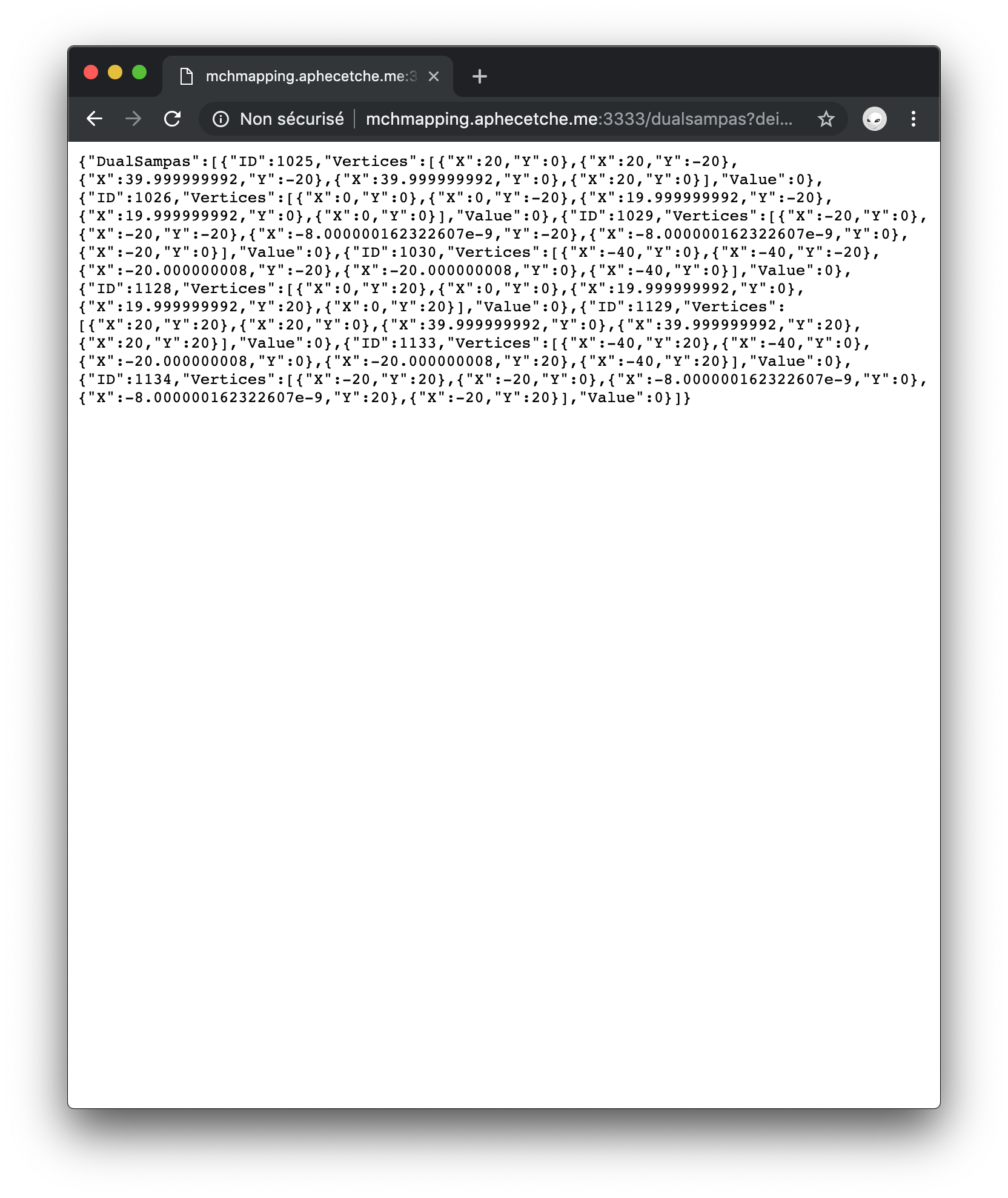

`?dualsampas` URLs gives you the shape of dual sampas
In JSON format.
---
### The same, formatted for humans
```json
{
"DualSampas": [
{
"ID": 1025,
"Vertices": [
{
"X": 20,
"Y": 0
},
{
"X": 20,
"Y": -20
},
{
"X": 39.999999992,
"Y": -20
},
{
"X": 39.999999992,
"Y": 0
},
{
"X": 20,
"Y": 0
}
],
"Value": 0
},
{
"ID": 1026,
"Vertices": [
{
"X": 0,
"Y": 0
},
{
"X": 0,
"Y": -20
},
{
"X": 19.999999992,
"Y": -20
},
{
"X": 19.999999992,
"Y": 0
},
{
"X": 0,
"Y": 0
}
],
"Value": 0
}
]
}
```
---
## CCDB API

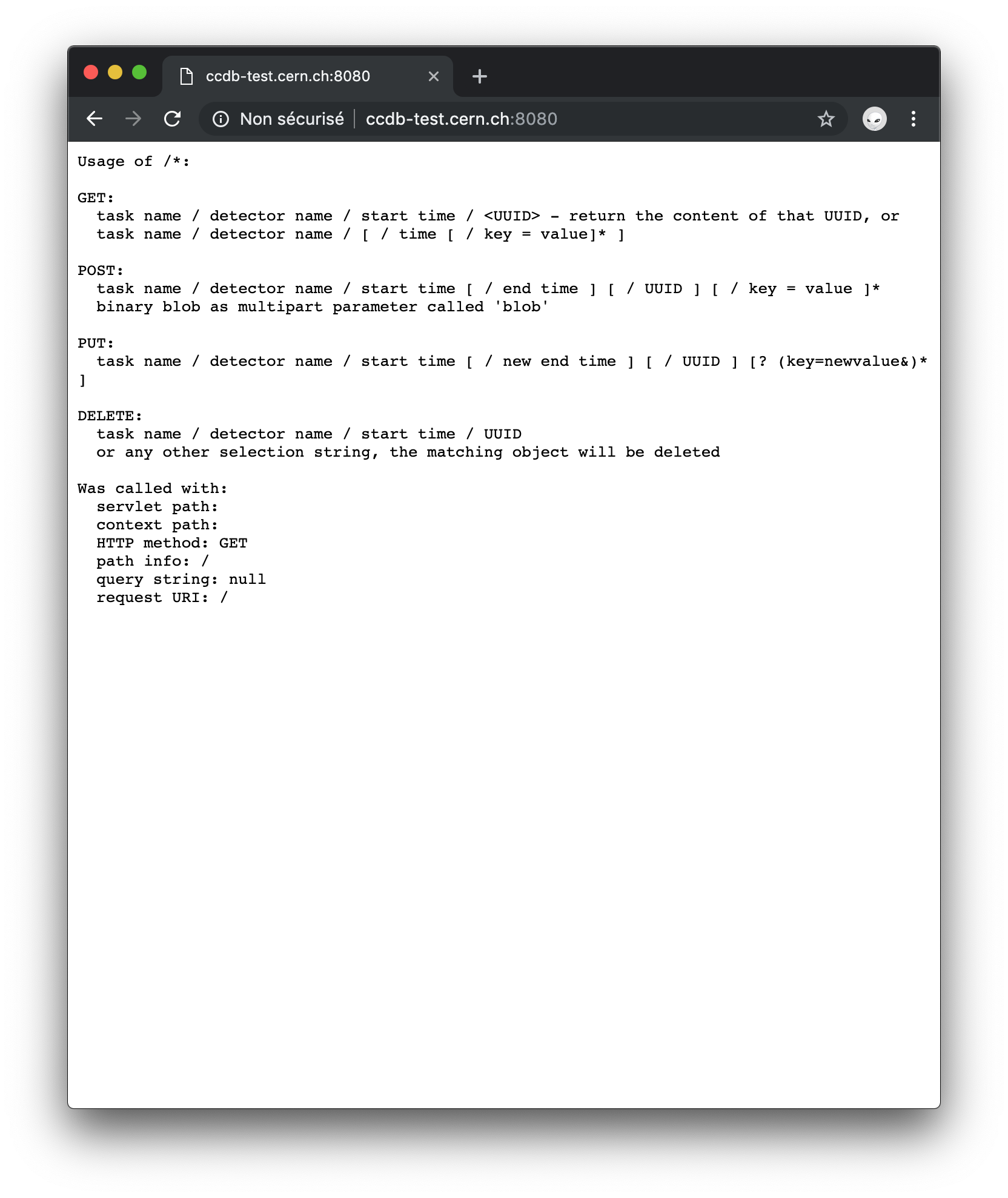

That one _is_ the official O2 CCDB one (WP10).
See e.g. this talk by [Costin](https://indico.cern.ch/event/806602/contributions/3362638/attachments/1822111/2980985/WP10_-_2019-04-02.pdf)
---
## CCDB JSON API
A lightweight front-end to the CCDB to convert Root (muon) calibration objects
to JSON format
The API that might be used by mchview to get calib data
(very _alpha_ software. see [serve-ocdb](https://github.com/aphecetche/ocdb/tree/serve-ocdb) branch of [alice-go](https://github.com/alice-go/aligo) repo)
---
## Current status
- Not quite as the mockup (yet)
- more a proof-of-concept for the moment
- but seems viable...
---
## Trying it locally
```
> git clone https://github.com/mrrtf/mchview.git
> echo "MCHVIEW_PORT=4444\nMCH_MAPPING_API=http://mchmapping.aphecetche.me:3333\n
MCH_MAPPING_API_PORT=3333\n" > .env
```
### With Docker
```
> docker compose up -d mchview
```
### With npm
```
> npm install && npm start
```
Open browser at `http://localhost:4444`
---
## Try it on the web
[MchView proto](http://mchmapping.aphecetche.me:5678)
---
## Code
https://github.com/mrrtf/mchview
#### Contributions welcome
---
