Recovering from a failed MCH Shuttle (3)

this is the same thing as Recovering from a failed MCH Shuttle but for another period/run.

During LHC17o/p period, the MCH Shuttle failed for pedestal runs :

282046 282034 282006 281971 281969

Basically all pedestal runs after Nov 9 around 23:30. The issue is that the latest Config file Run281937_999999999_v105_s0.root on the OCDB is not accessible due to an EOS problem.

To recover from this, Chiara Zampolli sent the Shuttle input files : the outputs from the ped DA :

~/analysis/2017/LHC17p
❯ tree -L 2
.
├── MCH_process_281969
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-5.shuttle
│   ├── DAQ_MCH_281969_CONFIG_ldc-MUON_TRK-6.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-5.shuttle
│   └── DAQ_MCH_281969_PEDESTALS_ldc-MUON_TRK-6.shuttle
├── MCH_process_281971
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-5.shuttle
│   ├── DAQ_MCH_281971_CONFIG_ldc-MUON_TRK-6.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-5.shuttle
│   └── DAQ_MCH_281971_PEDESTALS_ldc-MUON_TRK-6.shuttle
├── MCH_process_282006
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-5.shuttle
│   ├── DAQ_MCH_282006_CONFIG_ldc-MUON_TRK-6.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-5.shuttle
│   └── DAQ_MCH_282006_PEDESTALS_ldc-MUON_TRK-6.shuttle
├── MCH_process_282034
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-5.shuttle
│   ├── DAQ_MCH_282034_CONFIG_ldc-MUON_TRK-6.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-0.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-1.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-2.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-3.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-4.shuttle
│   ├── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-5.shuttle
│   └── DAQ_MCH_282034_PEDESTALS_ldc-MUON_TRK-6.shuttle
└── MCH_process_282046
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-0.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-1.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-2.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-3.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-4.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-5.shuttle
   ├── DAQ_MCH_282046_CONFIG_ldc-MUON_TRK-6.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-0.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-1.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-2.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-3.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-4.shuttle
   ├── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-5.shuttle
   └── DAQ_MCH_282046_PEDESTALS_ldc-MUON_TRK-6.shuttle

5 directories, 70 files

Then tweaked the MUON/macros/runMCHShuttleOffline.C macro to change the filename convention it expected and use it read in those files by a Test Shuttle and uploaded to a local OCDB (in effect this macro is “replaying” the MCH Shuttle preprocessors offline). For this to work AliRoot must be built with TestShuttle support (e.g. build a regular AliRoot and do a ccmake . in the build directory, activate the TEST_SHUTTLE option and rebuild). Assuming also that AliRoot-OCDB package has been installed with alibuild and that an AliEn token is available (alien-token-init username).

The result is some files in the AliRoot-OCDB local OCDB :

❯ find ~/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib -name '*28*' -atime -10m
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Config/Run281969_999999999_v0_s1.root
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Pedestals/Run281969_999999999_v0_s1.root
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Pedestals/Run281971_999999999_v0_s2.root
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Pedestals/Run282006_999999999_v0_s3.root
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Pedestals/Run282034_999999999_v0_s4.root
/Users/laurent/alice/sw/osx_x86-64/AliRoot-OCDB/latest/OCDB/MUON/Calib/Pedestals/Run282046_999999999_v0_s5.root

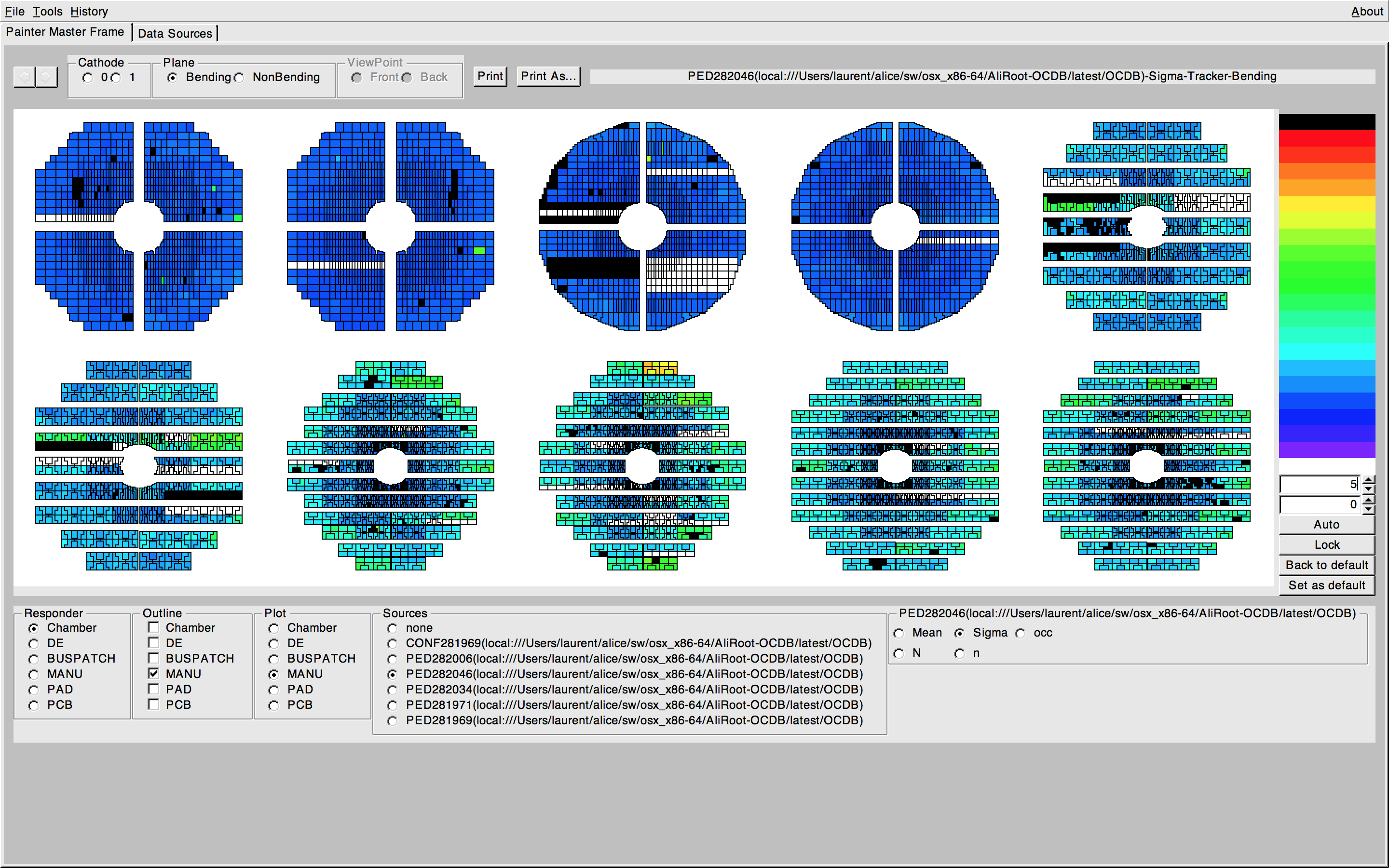

The OCDB files were then visually checked with the mchview program for pedestal and config.

Finally the object were archived (one per archive as there is a 10MB upload limit on JIRA…) and sent to Chiara (via JIRA ticket ALIROOT-7588) for upload to RAW ocdb.

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDB
❯ tar zcvf $HOME/recover-failed-mch-shuttle-281969.tar.gz $(find MUON/Calib -name '*281969*' | tr "\n" " ")
a MUON/Calib/Config/Run281969_999999999_v0_s1.root
a MUON/Calib/Pedestals/Run281969_999999999_v0_s1.root

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDB
❯ tar zcvf $HOME/recover-failed-mch-shuttle-281971.tar.gz $(find MUON/Calib -name '*281971*' | tr "\n" " ")
a MUON/Calib/Pedestals/Run281971_999999999_v0_s2.root

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDB
❯ tar zcvf $HOME/recover-failed-mch-shuttle-282006.tar.gz $(find MUON/Calib -name '*282006*' | tr "\n" " ")
a MUON/Calib/Pedestals/Run282006_999999999_v0_s3.root

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDB
❯ tar zcvf $HOME/recover-failed-mch-shuttle-282034.tar.gz $(find MUON/Calib -name '*282034*' | tr "\n" " ")
a MUON/Calib/Pedestals/Run282034_999999999_v0_s4.root

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDB
❯ tar zcvf $HOME/recover-failed-mch-shuttle-282046.tar.gz $(find MUON/Calib -name '*282046*' | tr "\n" " ")
a MUON/Calib/Pedestals/Run282046_999999999_v0_s5.root

~/alice/sw/osx_x86-64/AliRoot-OCDB/4e9547a691-1/OCDBtar zcvf $HOME/recover-failed-mch-shuttle.tar.gz $(find MUON/Calib -name '*28*' -atime -10m | tr "\n" " ")
